網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > KA系列齒輪減速電機

KA159減速機詳細信息

prevnext

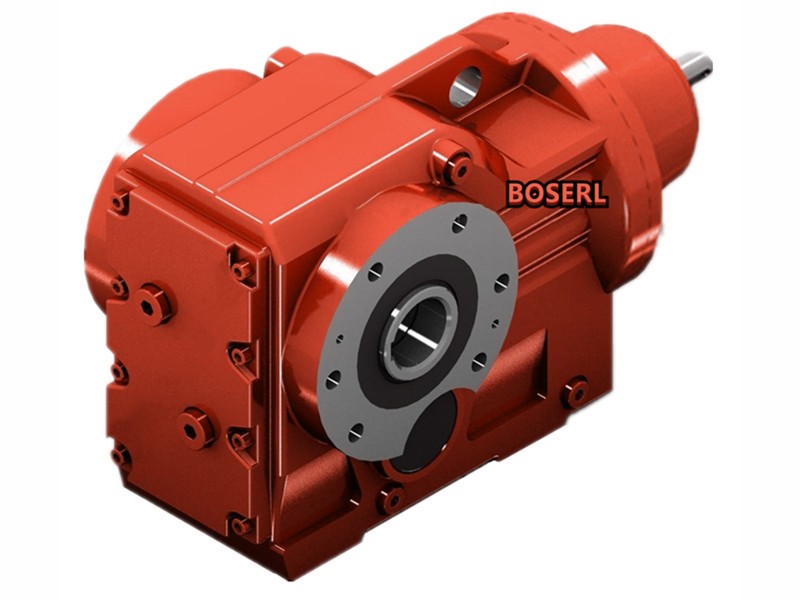

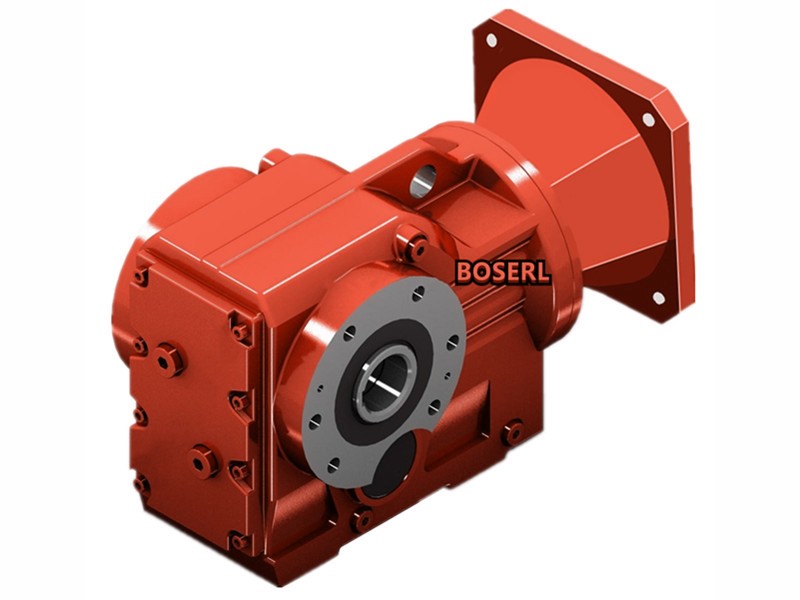

KA159減速機

訂購熱線:13360667204
  1. 詳細信息

KA159減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA159減速機選型樣本。

KA159-YE3-37KW-4P-70.38-M2-0°

KA:系列代號

159:減速機規格代號

YE3:電機

37KW:電機功率

4P:電機級數

70.38:減速機傳動比

M2:減速機安裝位置

0°:接線盒位置


KA159減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA159減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA159減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA159減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA159減速機型號:

WKA157-Y110SKA,WKA157-Y11SKA,WKA157-Y132SKA,WKA157-Y15SKA,WKA157-Y160SKA,WKA157-Y160M4,WKA157-Y18.5SKA,WKA157-Y180M4,WKA157-Y200SKA,WKA157-Y200M4,WKA157-Y225M4,WKA157-Y22SKA,WKA157-Y250M4,WKA157-Y280M4,WKA157-Y30SKA,WKA157-Y315M4,WKA157-Y37SKA,WKA157-Y45SKA,WKA157-Y55SKA,WKA157-Y75SKA,WKA157-Y90SKA,WKA157-YB160M4,WKA157-YB180M4,WKA157-YB200M4,WKA157-YB225M4,WKA157-YB250M4,WKA157-YB280M4,WKA157-YB315M4,WKA157-YDP160M4,WKA157-YDP180M4,WKA157-YDP200M4,WKA157-YDP225M4,WKA157-YDP250M4,WKA157-YDP280M4,WKA157-YDP315M4,WKA157-YE160M4,WKA157-YE180M4,WKA157-YE200M4,WKA157-YE225M4,WKA157-YE250M4,WKA157-YE280M4,WKA157-YE315M4,WKA157-YEJ160M4,WKA157-YEJ180M4,WKA157-YEJ200M4,WKA157-YEJ225M4,WKA157-YEJ250M4,WKA157-YEJ280M4,WKA157-YEJ315M4,WKA157-YEJB160M4,WKA157-YEJB180M4,WKA157-YEJB200M4,WKA157-YEJB225M4,WKA157-YEJB250M4,WKA157-YEJB280M4,WKA157-YEJB315M4,WKA157-YP160M4,WKA157-YP180M4,WKA157-YP200M4,WKA157-YP225M4,WKA157-YP250M4,WKA157-YP280M4,WKA157-YP315M4,WKA157-YPB160M4,WKA157-YPB180M4,WKA157-YPB200M4,WKA157-YPB225M4,WKA157-YPB250M4,WKA157-YPB280M4,WKA157-YPB315M4,WKA157-YPE160M4,WKA157-YPE180M4,WKA157-YPE200M4,WKA157-YPE225M4,WKA157-YPE250M4,WKA157-YPE280M4,WKA157-YPE315M4,WKA157-YS160M4,WKA157-YS180M4,WKA157-YS200M4,WKA157-YS225M4,WKA157-YS250M4,WKA157-YS280M4,WKA157-YS315M4,WKA157-YVB160M4,WKA157-YVB180M4,WKA157-YVB200M4,WKA157-YVB225M4,WKA157-YVB250M4,WKA157-YVB280M4,WKA157-YVB315M4,WKA157-YVP160M4,WKA157-YVP180M4,WKA157-YVP200M4,WKA157-YVP225M4,WKA157-YVP250M4,WKA157-YVP280M4,WKA157-YVP315M4,WKA157-YVPEJ160M4,WKA157-YVPEJ180M4,WKA157-YVPEJ200M4,WKA157-YVPEJ225M4,WKA157-YVPEJ250M4,WKA157-YVPEJ280M4,WKA157-YVPEJ315M4,AKA157-Y110SKA,AKA157-Y11SKA,AKA157-Y132SKA,AKA157-Y15SKA,AKA157-Y160SKA,AKA157-Y160M4,AKA157-Y18.5SKA,AKA157-Y180M4,AKA157-Y200SKA,AKA157-Y200M4,AKA157-Y225M4,AKA157-Y22SKA,AKA157-Y250M4,AKA157-Y280M4,AKA157-Y30SKA,AKA157-Y315M4,AKA157-Y37SKA,AKA157-Y45SKA,AKA157-Y55SKA,AKA157-Y75SKA,AKA157-Y90SKA,AKA157-YB160M4,AKA157-YB180M4,AKA157-YB200M4,AKA157-YB225M4,AKA157-YB250M4,AKA157-YB280M4,AKA157-YB315M4,AKA157-YDP160M4,AKA157-YDP180M4,AKA157-YDP200M4,AKA157-YDP225M4,AKA157-YDP250M4,AKA157-YDP280M4,AKA157-YDP315M4,AKA157-YE160M4,AKA157-YE180M4,AKA157-YE200M4,AKA157-YE225M4,AKA157-YE250M4,AKA157-YE280M4,AKA157-YE315M4,AKA157-YEJ160M4,AKA157-YEJ180M4,AKA157-YEJ200M4,AKA157-YEJ225M4,AKA157-YEJ250M4,AKA157-YEJ280M4,AKA157-YEJ315M4,AKA157-YEJB160M4,AKA157-YEJB180M4,AKA157-YEJB200M4,AKA157-YEJB225M4,AKA157-YEJB250M4,AKA157-YEJB280M4,AKA157-YEJB315M4,AKA157-YP160M4,AKA157-YP180M4,AKA157-YP200M4,AKA157-YP225M4,AKA157-YP250M4,AKA157-YP280M4,AKA157-YP315M4,AKA157-YPB160M4,AKA157-YPB180M4,AKA157-YPB200M4,AKA157-YPB225M4,AKA157-YPB250M4,AKA157-YPB280M4,AKA157-YPB315M4,AKA157-YPE160M4,AKA157-YPE180M4,AKA157-YPE200M4,AKA157-YPE225M4,AKA157-YPE250M4,AKA157-YPE280M4,AKA157-YPE315M4,AKA157-YS160M4,AKA157-YS180M4,AKA157-YS200M4,AKA157-YS225M4,AKA157-YS250M4,AKA157-YS280M4,AKA157-YS315M4,AKA157-YVB160M4,AKA157-YVB180M4,AKA157-YVB200M4,AKA157-YVB225M4,AKA157-YVB250M4,AKA157-YVB280M4,AKA157-YVB315M4,AKA157-YVP160M4,AKA157-YVP180M4,AKA157-YVP200M4,AKA157-YVP225M4,AKA157-YVP250M4,AKA157-YVP280M4,AKA157-YVP315M4,AKA157-YVPEJ160M4,AKA157-YVPEJ180M4,AKA157-YVPEJ200M4,AKA157-YVPEJ225M4,AKA157-YVPEJ250M4,AKA157-YVPEJ280M4,AKA157-YVPEJ315M4,NKA157-Y110SKA,NKA157-Y11SKA,NKA157-Y132SKA,NKA157-Y15SKA,NKA157-Y160SKA,NKA157-Y160M4,NKA157-Y18.5SKA,NKA157-Y180M4,NKA157-Y200SKA,NKA157-Y200M4,NKA157-Y225M4,NKA157-Y22SKA,NKA157-Y250M4,NKA157-Y280M4,NKA157-Y30SKA,NKA157-Y315M4,NKA157-Y37SKA,NKA157-Y45SKA,NKA157-Y55SKA,NKA157-Y75SKA,NKA157-Y90SKA,NKA157-YB160M4,NKA157-YB180M4,NKA157-YB200M4,NKA157-YB225M4,NKA157-YB250M4,NKA157-YB280M4,NKA157-YB315M4,NKA157-YDP160M4,NKA157-YDP180M4,NKA157-YDP200M4,NKA157-YDP225M4,NKA157-YDP250M4,NKA157-YDP280M4,NKA157-YDP315M4,NKA157-YE160M4,NKA157-YE180M4,NKA157-YE200M4,NKA157-YE225M4,NKA157-YE250M4,NKA157-YE280M4,NKA157-YE315M4,NKA157-YEJ160M4,NKA157-YEJ180M4,NKA157-YEJ200M4,NKA157-YEJ225M4,NKA157-YEJ250M4,NKA157-YEJ280M4,NKA157-YEJ315M4,NKA157-YEJB160M4,NKA157-YEJB180M4,NKA157-YEJB200M4,NKA157-YEJB225M4,NKA157-YEJB250M4,NKA157-YEJB280M4,NKA157-YEJB315M4,NKA157-YP160M4,NKA157-YP180M4,NKA157-YP200M4,NKA157-YP225M4,NKA157-YP250M4,NKA157-YP280M4,NKA157-YP315M4,NKA157-YPB160M4,NKA157-YPB180M4,NKA157-YPB200M4,NKA157-YPB225M4,NKA157-YPB250M4,NKA157-YPB280M4,NKA157-YPB315M4,NKA157-YPE160M4,NKA157-YPE180M4,NKA157-YPE200M4,NKA157-YPE225M4,NKA157-YPE250M4,NKA157-YPE280M4,NKA157-YPE315M4,NKA157-YS160M4,NKA157-YS180M4,NKA157-YS200M4,NKA157-YS225M4,NKA157-YS250M4,NKA157-YS280M4,NKA157-YS315M4,NKA157-YVB160M4,NKA157-YVB180M4,NKA157-YVB200M4,NKA157-YVB225M4,NKA157-YVB250M4,NKA157-YVB280M4,NKA157-YVB315M4,NKA157-YVP160M4,NKA157-YVP180M4,NKA157-YVP200M4,NKA157-YVP225M4,NKA157-YVP250M4,NKA157-YVP280M4,NKA157-YVP315M4,NKA157-YVPEJ160M4,NKA157-YVPEJ180M4,NKA157-YVPEJ200M4,NKA157-YVPEJ225M4,NKA157-YVPEJ250M4,NKA157-YVPEJ280M4,NKA157-YVPEJ315M4,GKA159-Y110SKA,GKA159-Y11SKA,GKA159-Y132SKA,GKA159-Y15SKA,GKA159-Y160SKA,GKA159-Y160M4,GKA159-Y18.5SKA,GKA159-Y180M4,GKA159-Y200SKA,GKA159-Y200M4,GKA159-Y225M4,GKA159-Y22SKA,GKA159-Y250M4,GKA159-Y280M4,GKA159-Y30SKA,GKA159-Y315M4,GKA159-Y37SKA,GKA159-Y45SKA,GKA159-Y55SKA,GKA159-Y75SKA,GKA159-Y90SKA,GKA159-YB160M4,GKA159-YB180M4,GKA159-YB200M4,GKA159-YB225M4,GKA159-YB250M4,GKA159-YB280M4,GKA159-YB315M4,GKA159-YDP160M4,GKA159-YDP180M4,GKA159-YDP200M4,GKA159-YDP225M4,GKA159-YDP250M4,GKA159-YDP280M4,GKA159-YDP315M4,GKA159-YE160M4,GKA159-YE180M4,GKA159-YE200M4,GKA159-YE225M4,GKA159-YE250M4,GKA159-YE280M4,GKA159-YE315M4,GKA159-YEJ160M4,GKA159-YEJ180M4,GKA159-YEJ200M4,GKA159-YEJ225M4,GKA159-YEJ250M4,GKA159-YEJ280M4,GKA159-YEJ315M4,GKA159-YEJB160M4,GKA159-YEJB180M4,GKA159-YEJB200M4,GKA159-YEJB225M4,GKA159-YEJB250M4,GKA159-YEJB280M4,GKA159-YEJB315M4,GKA159-YP160M4,GKA159-YP180M4,GKA159-YP200M4,GKA159-YP225M4,GKA159-YP250M4,GKA159-YP280M4,GKA159-YP315M4,GKA159-YPB160M4,GKA159-YPB180M4,GKA159-YPB200M4,GKA159-YPB225M4,GKA159-YPB250M4,GKA159-YPB280M4,GKA159-YPB315M4,GKA159-YPE160M4,GKA159-YPE180M4,GKA159-YPE200M4,GKA159-YPE225M4,GKA159-YPE250M4,GKA159-YPE280M4,GKA159-YPE315M4,GKA159-YS160M4,GKA159-YS180M4,GKA159-YS200M4,GKA159-YS225M4,GKA159-YS250M4,GKA159-YS280M4,GKA159-YS315M4,GKA159-YVB160M4,GKA159-YVB180M4,GKA159-YVB200M4,GKA159-YVB225M4,GKA159-YVB250M4,GKA159-YVB280M4,GKA159-YVB315M4,GKA159-YVP160M4,GKA159-YVP180M4,GKA159-YVP200M4,GKA159-YVP225M4,GKA159-YVP250M4,GKA159-YVP280M4,GKA159-YVP315M4,GKA159-YVPEJ160M4,GKA159-YVPEJ180M4,GKA159-YVPEJ200M4,GKA159-YVPEJ225M4,GKA159-YVPEJ250M4,GKA159-YVPEJ280M4,GKA159-YVPEJ315M4,SKA157-Y110SKA,SKA157-Y11SKA,SKA157-Y132SKA,SKA157-Y15SKA,SKA157-Y160SKA,SKA157-Y160M4,SKA157-Y18.5SKA,SKA157-Y180M4,SKA157-Y200SKA,SKA157-Y200M4,SKA157-Y225M4,SKA157-Y22SKA,SKA157-Y250M4,SKA157-Y280M4,SKA157-Y30SKA,SKA157-Y315M4,SKA157-Y37SKA,SKA157-Y45SKA,SKA157-Y55SKA,SKA157-Y75SKA,SKA157-Y90SKA,SKA157-YB160M4,SKA157-YB180M4,SKA157-YB200M4,SKA157-YB225M4,SKA157-YB250M4,SKA157-YB280M4,SKA157-YB315M4,SKA157-YDP160M4,SKA157-YDP180M4,SKA157-YDP200M4,SKA157-YDP225M4,SKA157-YDP250M4,SKA157-YDP280M4,SKA157-YDP315M4,SKA157-YE160M4,SKA157-YE180M4,SKA157-YE200M4,SKA157-YE225M4,SKA157-YE250M4,SKA157-YE280M4,SKA157-YE315M4,SKA157-YEJ160M4,SKA157-YEJ180M4,SKA157-YEJ200M4,SKA157-YEJ225M4,SKA157-YEJ250M4,SKA157-YEJ280M4,SKA157-YEJ315M4,SKA157-YEJB160M4,SKA157-YEJB180M4,SKA157-YEJB200M4,SKA157-YEJB225M4,SKA157-YEJB250M4,SKA157-YEJB280M4,SKA157-YEJB315M4,SKA157-YP160M4,SKA157-YP180M4,SKA157-YP200M4,SKA157-YP225M4,SKA157-YP250M4,SKA157-YP280M4,SKA157-YP315M4,SKA157-YPB160M4,SKA157-YPB180M4,SKA157-YPB200M4,SKA157-YPB225M4,SKA157-YPB250M4,SKA157-YPB280M4,SKA157-YPB315M4,SKA157-YPE160M4,SKA157-YPE180M4,SKA157-YPE200M4,SKA157-YPE225M4,SKA157-YPE250M4,SKA157-YPE280M4,SKA157-YPE315M4,SKA157-YS160M4,SKA157-YS180M4,SKA157-YS200M4,SKA157-YS225M4,SKA157-YS250M4,SKA157-YS280M4,SKA157-YS315M4,SKA157-YVB160M4,SKA157-YVB180M4,SKA157-YVB200M4,SKA157-YVB225M4,SKA157-YVB250M4,SKA157-YVB280M4,SKA157-YVB315M4,SKA157-YVP160M4,SKA157-YVP180M4,SKA157-YVP200M4,SKA157-YVP225M4,SKA157-YVP250M4,SKA157-YVP280M4,SKA157-YVP315M4,SKA157-YVPEJ160M4,SKA157-YVPEJ180M4,SKA157-YVPEJ200M4,SKA157-YVPEJ225M4,SKA157-YVPEJ250M4,SKA157-YVPEJ280M4,SKA157-YVPEJ315M4。

KA159減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K159減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA159減速機 KA157減速機結構圖 KA157減速機數模 KA157減速機樣本 KA157減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA159減速機數模 點擊下載
KA159減速機樣本 點擊下載
