德國BOSERL研發制造節能環保齒輪減速電機一體機,蝸輪蝸桿減速馬達,齒輪減速機帶電機19年創辦中國BOSERL齒輪減速電機生產廠家”伯仕傳動”

齒輪減速電機一體機_蝸輪蝸桿減速馬達-德國BOSERL齒輪減速機帶電機生產廠家

咨詢服務熱線:

13360667204

微信13360667204

直角減速機
網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > KF系列齒輪減速電機

KF159R99減速機詳細信息

prevnext

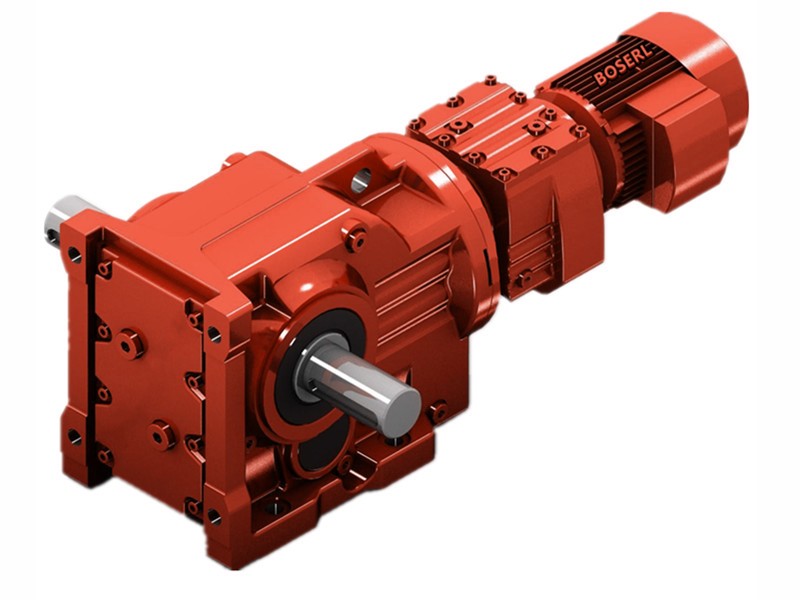

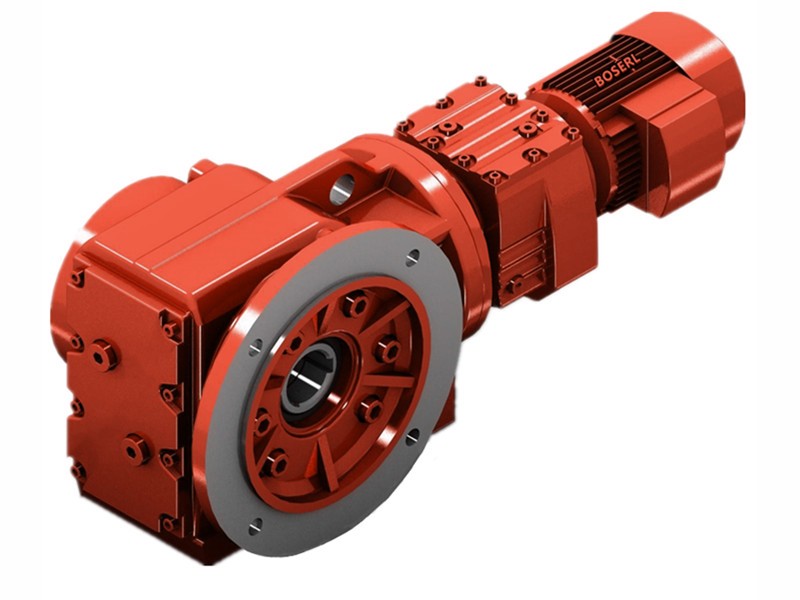

KF159R99減速機

訂購熱線:13360667204
  1. 詳細信息

KF159R99減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF159R99減速機選型樣本。

KF159R99-Y3KW-4P-756-M6-0°

KF/R:系列代號

159/99:減速機規格代號

Y:電機

3KW:電機功率

4P:電機級數

756:減速機傳動比

M6:減速機安裝位置

0°:接線盒位置


KF159R99減速機電機安裝方法:

KF159R99減速機電機須由熟悉安全條例及國家法規的專業人員安裝和使用。齒輪減速電機

按照當地規定,電機安裝和操作場所應配備必要的安全防護設備,以避免意外事故。安裝地點請優先選擇符合下列條件的地方:容易做檢查的地方,并盡可能是干燥通風的地方;塵埃少且離爐等熱源較遠的地方。

KF159R99減速機電機接地:為了防止漏電等事故,根據電氣工作物規定,客戶使用前須將線盒內的接地螺釘與地線導通,如EN50014標準的表3所示。

KF159R99減速機電機垂直安裝,轉軸朝下時,必須有防護下落物體和液體的防護罩。確保電機防護等級與環境和氣候條件相匹配,如確保接線盒內不進水。

KF159R99減速機電機電網和電機端子之間的電纜接線必須根據銘牌上的額定電流,符合國家相關安裝標準或EN60204-1標準的要求。

KF159R99減速機電機只用于固定安裝。電機的電纜接頭應符合GB3836.8/EN 60079-15。電纜接頭的防護等級至少應等同于電機的防護等級。電纜應經機械防護后緊固在接線盒上,應符合GB3836.1/EN60079-0和當地的安裝標準的規定。

KF159R99減速機電機當使用連軸器連接輸出軸時,需安裝固定且務必使兩軸平行,底座需以安裝孔徑相適應的螺栓進行安裝,確保齒輪減速電機緊密牢固。

KF159R99減速機電機所有安裝在出力軸上的裝備必須輕裝于軸上,勿使用鐵錘及其它鈍器等敲擊出力軸,避免因安裝遇緊而引起軸承損壞。

KF159R99減速機電機滑輪、鏈輪或齒輪在裝配時盡量靠近出力軸承以減少彎曲應力。應使用不超過出力軸直徑6倍的鏈輪、皮帶輪等與出軸連接。使用時請配合H7公差使用,避免使用中發生異常噪音及軸面受損。

KF159R99減速機電機安裝完成后,可以在出力軸表面涂上適當的防銹油或防銹漆以保護出力軸避免生銹。根據電源電壓,選擇適合的接線方式接好電機線盒內引線,接線盒內接錯線會導致電機燒毀。要根據電機銘牌上額定電流,建議5A/mm2的電流密度選擇合適尺寸電纜線給電機供電。

KF159R99減速機電機使用變頻器給帶剎車功能的齒輪電機供電時,需將剎車線(黃色)單獨提供交流220V供電,供電應與齒輪減速電機供電同步。直角減速機

KF159R99減速機電機溫度高解決方法:

負載過大/頻繁啟停,選擇大容量電機或減輕負載;

風道阻塞,清除風道油垢;

環境溫度增高,太陽下暴曬/附近有其它高溫熱源,應采用遮陽或降溫措施;

電機缺相運行,電源接觸不良,修復觸點及電源線路;

電機缺相運行,線圈斷路,更換定子線圈;

繞組市間或相間短路,電流猛增,更換定子線圈;

電源電壓波動超10%:電流超標,采用穩壓措施,或選用大容量電機;

接法錯誤,Y接法與△接法用反,接法更正;

定轉子擦,更換電機;

轉子斷條更換轉子。伺服電機減速機


KF159R99減速電機型號:

YQKF157R97-Y100M4,YQKF157R97-Y112M4,YQKF157R97-Y132M4,YQKF157R97-Y160M4,YQKF157R97-Y80M4,YQKF157R97-Y90M4,YQKF157RF97-Y0.55KWF,YQKF157RF97-Y0.75KWF,YQKF157RF97-Y1.1KWF,YQKF157RF97-Y1.5KWF,YQKF157RF97-Y100M4,YQKF157RF97-Y112M4,YQKF157RF97-Y11KWF,YQKF157RF97-Y132M4,YQKF157RF97-Y15KWF,YQKF157RF97-Y160M4,YQKF157RF97-Y2.2KWF,YQKF157RF97-Y3KWF,YQKF157RF97-Y4KWF,YQKF157RF97-Y5.5KWF,YQKF157RF97-Y7.5KWF,YQKF157RF97-Y80M4,YQKF157RF97-Y90M4,YQKF157RF97-YB100L4,YQKF157RF97-YB112M4,YQKF157RF97-YB132M4,YQKF157RF97-YB160M4,YQKF157RF97-YB80M4,YQKF157RF97-YB90S4,YQKF157RF97-YDP100L4,YQKF157RF97-YDP112M4,YQKF157RF97-YDP132M4,YQKF157RF97-YDP160M4,YQKF157RF97-YDP80M4,YQKF157RF97-YDP90S4,YQKF157RF97-YE100L4,YQKF157RF97-YE112M4,YQKF157RF97-YE132M4,YQKF157RF97-YE160M4,YQKF157RF97-YE80M4,YQKF157RF97-YE90S4,YQKF157RF97-YEJ100L4,YQKF157RF97-YEJ112M4,YQKF157RF97-YEJ132M4,YQKF157RF97-YEJ160M4,YQKF157RF97-YEJ80M4,YQKF157RF97-YEJ90S4,YQKF157RF97-YEJB100L4,YQKF157RF97-YEJB112M4,YQKF157RF97-YEJB132M4,YQKF157RF97-YEJB160M4,YQKF157RF97-YEJB80M4,YQKF157RF97-YEJB90S4,YQKF157RF97-YP100L4,YQKF157RF97-YP112M4,YQKF157RF97-YP132M4,YQKF157RF97-YP160M4,YQKF157RF97-YP80M4,YQKF157RF97-YP90S4,YQKF157RF97-YPB100L4,YQKF157RF97-YPB112M4,YQKF157RF97-YPB132M4,YQKF157RF97-YPB160M4,YQKF157RF97-YPB80M4,YQKF157RF97-YPB90S4,YQKF157RF97-YPE100L4,YQKF157RF97-YPE112M4,YQKF157RF97-YPE132M4,YQKF157RF97-YPE160M4,YQKF157RF97-YPE80M4,YQKF157RF97-YPE90S4,YQKF157RF97-YS100L4,YQKF157RF97-YS112M4,YQKF157RF97-YS132M4,YQKF157RF97-YS160M4,YQKF157RF97-YS80M4,YQKF157RF97-YS90S4,YQKF157RF97-YVB100L4,YQKF157RF97-YVB112M4,YQKF157RF97-YVB132M4,YQKF157RF97-YVB160M4,YQKF157RF97-YVB80M4,YQKF157RF97-YVB90S4,YQKF157RF97-YVP100L4,YQKF157RF97-YVP112M4,YQKF157RF97-YVP132M4,YQKF157RF97-YVP160M4,YQKF157RF97-YVP80M4,YQKF157RF97-YVP90S4,YQKF157RF97-YVPEJ100L4,YQKF157RF97-YVPEJ112M4,YQKF157RF97-YVPEJ132M4,YQKF157RF97-YVPEJ160M4,YQKF157RF97-YVPEJ80M4,YQKF157RF97-YVPEJ90S4,AKF157R97-Y100M4,AKF157R97-Y112M4,AKF157R97-Y132M4,AKF157R97-Y160M4,AKF157R97-Y80M4,AKF157R97-Y90M4,AKF157RF97-Y0.55KWF,AKF157RF97-Y0.75KWF,AKF157RF97-Y1.1KWF,AKF157RF97-Y1.5KWF,AKF157RF97-Y100M4,AKF157RF97-Y112M4,AKF157RF97-Y11KWF,AKF157RF97-Y132M4,AKF157RF97-Y15KWF,AKF157RF97-Y160M4,AKF157RF97-Y2.2KWF,AKF157RF97-Y3KWF,AKF157RF97-Y4KWF,AKF157RF97-Y5.5KWF,AKF157RF97-Y7.5KWF,AKF157RF97-Y80M4,AKF157RF97-Y90M4,AKF157RF97-YB100L4,AKF157RF97-YB112M4,AKF157RF97-YB132M4,AKF157RF97-YB160M4,AKF157RF97-YB80M4,AKF157RF97-YB90S4,AKF157RF97-YDP100L4,AKF157RF97-YDP112M4,AKF157RF97-YDP132M4,AKF157RF97-YDP160M4,AKF157RF97-YDP80M4,AKF157RF97-YDP90S4,AKF157RF97-YE100L4,AKF157RF97-YE112M4,AKF157RF97-YE132M4,AKF157RF97-YE160M4,AKF157RF97-YE80M4,AKF157RF97-YE90S4,AKF157RF97-YEJ100L4,AKF157RF97-YEJ112M4,AKF157RF97-YEJ132M4,AKF157RF97-YEJ160M4,AKF157RF97-YEJ80M4,AKF157RF97-YEJ90S4,AKF157RF97-YEJB100L4,AKF157RF97-YEJB112M4,AKF157RF97-YEJB132M4,AKF157RF97-YEJB160M4,AKF157RF97-YEJB80M4,AKF157RF97-YEJB90S4,AKF157RF97-YP100L4,AKF157RF97-YP112M4,AKF157RF97-YP132M4,AKF157RF97-YP160M4,AKF157RF97-YP80M4,AKF157RF97-YP90S4,AKF157RF97-YPB100L4,AKF157RF97-YPB112M4,AKF157RF97-YPB132M4,AKF157RF97-YPB160M4,AKF157RF97-YPB80M4,AKF157RF97-YPB90S4,AKF157RF97-YPE100L4,AKF157RF97-YPE112M4,AKF157RF97-YPE132M4,AKF157RF97-YPE160M4,AKF157RF97-YPE80M4,AKF157RF97-YPE90S4,AKF157RF97-YS100L4,AKF157RF97-YS112M4,AKF157RF97-YS132M4,AKF157RF97-YS160M4,AKF157RF97-YS80M4,AKF157RF97-YS90S4,AKF157RF97-YVB100L4,AKF157RF97-YVB112M4,AKF157RF97-YVB132M4,AKF157RF97-YVB160M4,AKF157RF97-YVB80M4,AKF157RF97-YVB90S4,AKF157RF97-YVP100L4,AKF157RF97-YVP112M4,AKF157RF97-YVP132M4,AKF157RF97-YVP160M4,AKF157RF97-YVP80M4,AKF157RF97-YVP90S4,AKF157RF97-YVPEJ100L4,AKF157RF97-YVPEJ112M4,AKF157RF97-YVPEJ132M4,AKF157RF97-YVPEJ160M4,AKF157RF97-YVPEJ80M4,AKF157RF97-YVPEJ90S4,SKF157R97-Y100M4,SKF157R97-Y112M4,SKF157R97-Y132M4,SKF157R97-Y160M4,SKF157R97-Y80M4,SKF157R97-Y90M4,SKF157RF97-Y0.55KWF,SKF157RF97-Y0.75KWF,SKF157RF97-Y1.1KWF,SKF157RF97-Y1.5KWF,SKF157RF97-Y100M4,SKF157RF97-Y112M4,SKF157RF97-Y11KWF,SKF157RF97-Y132M4,SKF157RF97-Y15KWF,SKF157RF97-Y160M4,SKF157RF97-Y2.2KWF,SKF157RF97-Y3KWF,SKF157RF97-Y4KWF,SKF157RF97-Y5.5KWF,SKF157RF97-Y7.5KWF,SKF157RF97-Y80M4,SKF157RF97-Y90M4,SKF157RF97-YB100L4,SKF157RF97-YB112M4,SKF157RF97-YB132M4,SKF157RF97-YB160M4,SKF157RF97-YB80M4,SKF157RF97-YB90S4,SKF157RF97-YDP100L4,SKF157RF97-YDP112M4,SKF157RF97-YDP132M4,SKF157RF97-YDP160M4,SKF157RF97-YDP80M4,SKF157RF97-YDP90S4,SKF157RF97-YE100L4,SKF157RF97-YE112M4,SKF157RF97-YE132M4,SKF157RF97-YE160M4,SKF157RF97-YE80M4,SKF157RF97-YE90S4,SKF157RF97-YEJ100L4,SKF157RF97-YEJ112M4,SKF157RF97-YEJ132M4,SKF157RF97-YEJ160M4,SKF157RF97-YEJ80M4,SKF157RF97-YEJ90S4,SKF157RF97-YEJB100L4,SKF157RF97-YEJB112M4,SKF157RF97-YEJB132M4,SKF157RF97-YEJB160M4,SKF157RF97-YEJB80M4,SKF157RF97-YEJB90S4,SKF157RF97-YP100L4,SKF157RF97-YP112M4,SKF157RF97-YP132M4,SKF157RF97-YP160M4,SKF157RF97-YP80M4,SKF157RF97-YP90S4,SKF157RF97-YPB100L4,SKF157RF97-YPB112M4,SKF157RF97-YPB132M4,SKF157RF97-YPB160M4,SKF157RF97-YPB80M4,SKF157RF97-YPB90S4,SKF157RF97-YPE100L4,SKF157RF97-YPE112M4,SKF157RF97-YPE132M4,SKF157RF97-YPE160M4,SKF157RF97-YPE80M4,SKF157RF97-YPE90S4,SKF157RF97-YS100L4,SKF157RF97-YS112M4,SKF157RF97-YS132M4,SKF157RF97-YS160M4,SKF157RF97-YS80M4,SKF157RF97-YS90S4,SKF157RF97-YVB100L4,SKF157RF97-YVB112M4,SKF157RF97-YVB132M4,SKF157RF97-YVB160M4,SKF157RF97-YVB80M4,SKF157RF97-YVB90S4,SKF157RF97-YVP100L4,SKF157RF97-YVP112M4,SKF157RF97-YVP132M4,SKF157RF97-YVP160M4,SKF157RF97-YVP80M4,SKF157RF97-YVP90S4,SKF157RF97-YVPEJ100L4,SKF157RF97-YVPEJ112M4,SKF157RF97-YVPEJ132M4,SKF157RF97-YVPEJ160M4,SKF157RF97-YVPEJ80M4,SKF157RF97-YVPEJ90S4,XDKF157R97-Y100M4,XDKF157R97-Y112M4,XDKF157R97-Y132M4,XDKF157R97-Y160M4,XDKF157R97-Y80M4,XDKF157R97-Y90M4,XDKF157RF97-Y0.55KWF,XDKF157RF97-Y0.75KWF,XDKF157RF97-Y1.1KWF,XDKF157RF97-Y1.5KWF,XDKF157RF97-Y100M4,XDKF157RF97-Y112M4,XDKF157RF97-Y11KWF,XDKF157RF97-Y132M4,XDKF157RF97-Y15KWF,XDKF157RF97-Y160M4,XDKF157RF97-Y2.2KWF,XDKF157RF97-Y3KWF,XDKF157RF97-Y4KWF,XDKF157RF97-Y5.5KWF,XDKF157RF97-Y7.5KWF,XDKF157RF97-Y80M4,XDKF157RF97-Y90M4,XDKF157RF97-YB100L4,XDKF157RF97-YB112M4,XDKF157RF97-YB132M4,XDKF157RF97-YB160M4,XDKF157RF97-YB80M4,XDKF157RF97-YB90S4,XDKF157RF97-YDP100L4,XDKF157RF97-YDP112M4,XDKF157RF97-YDP132M4,XDKF157RF97-YDP160M4,XDKF157RF97-YDP80M4,XDKF157RF97-YDP90S4,XDKF157RF97-YE100L4,XDKF157RF97-YE112M4,XDKF157RF97-YE132M4,XDKF157RF97-YE160M4,XDKF157RF97-YE80M4,XDKF157RF97-YE90S4,XDKF157RF97-YEJ100L4,XDKF157RF97-YEJ112M4,XDKF157RF97-YEJ132M4,XDKF157RF97-YEJ160M4,XDKF157RF97-YEJ80M4,XDKF157RF97-YEJ90S4,XDKF157RF97-YEJB100L4,XDKF157RF97-YEJB112M4,XDKF157RF97-YEJB132M4,XDKF157RF97-YEJB160M4,XDKF157RF97-YEJB80M4,XDKF157RF97-YEJB90S4,XDKF157RF97-YP100L4,XDKF157RF97-YP112M4,XDKF157RF97-YP132M4,XDKF157RF97-YP160M4,XDKF157RF97-YP80M4,XDKF157RF97-YP90S4,XDKF157RF97-YPB100L4,XDKF157RF97-YPB112M4,XDKF157RF97-YPB132M4,XDKF157RF97-YPB160M4,XDKF157RF97-YPB80M4,XDKF157RF97-YPB90S4,XDKF157RF97-YPE100L4,XDKF157RF97-YPE112M4,XDKF157RF97-YPE132M4,XDKF157RF97-YPE160M4,XDKF157RF97-YPE80M4,XDKF157RF97-YPE90S4,XDKF157RF97-YS100L4,XDKF157RF97-YS112M4,XDKF157RF97-YS132M4,XDKF157RF97-YS160M4,XDKF157RF97-YS80M4,XDKF157RF97-YS90S4,XDKF157RF97-YVB100L4,XDKF157RF97-YVB112M4,XDKF157RF97-YVB132M4,XDKF157RF97-YVB160M4,XDKF157RF97-YVB80M4,XDKF157RF97-YVB90S4,XDKF157RF97-YVP100L4,XDKF157RF97-YVP112M4,XDKF157RF97-YVP132M4,XDKF157RF97-YVP160M4,XDKF157RF97-YVP80M4,XDKF157RF97-YVP90S4,XDKF157RF97-YVPEJ100L4,XDKF157RF97-YVPEJ112M4,XDKF157RF97-YVPEJ132M4,XDKF157RF97-YVPEJ160M4,XDKF157RF97-YVPEJ80M4,XDKF157RF97-YVPEJ90S4,WKF157R97-Y100M4,WKF157R97-Y112M4,WKF157R97-Y132M4,WKF157R97-Y160M4,WKF157R97-Y80M4,WKF157R97-Y90M4,WKF157RF97-Y0.55KWF,WKF157RF97-Y0.75KWF,WKF157RF97-Y1.1KWF,WKF157RF97-Y1.5KWF,WKF157RF97-Y100M4,WKF157RF97-Y112M4,WKF157RF97-Y11KWF,WKF157RF97-Y132M4,WKF157RF97-Y15KWF,WKF157RF97-Y160M4,WKF157RF97-Y2.2KWF,WKF157RF97-Y3KWF,WKF157RF97-Y4KWF,WKF157RF97-Y5.5KWF,WKF157RF97-Y7.5KWF,WKF157RF97-Y80M4,WKF157RF97-Y90M4,WKF157RF97-YB100L4,WKF157RF97-YB112M4,WKF157RF97-YB132M4,WKF157RF97-YB160M4,WKF157RF97-YB80M4,WKF157RF97-YB90S4,WKF157RF97-YDP100L4,WKF157RF97-YDP112M4,WKF157RF97-YDP132M4,WKF157RF97-YDP160M4,WKF157RF97-YDP80M4,WKF157RF97-YDP90S4,WKF157RF97-YE100L4,WKF157RF97-YE112M4,WKF157RF97-YE132M4,WKF157RF97-YE160M4,WKF157RF97-YE80M4,WKF157RF97-YE90S4,WKF157RF97-YEJ100L4,WKF157RF97-YEJ112M4,WKF157RF97-YEJ132M4,WKF157RF97-YEJ160M4,WKF157RF97-YEJ80M4,WKF157RF97-YEJ90S4,WKF157RF97-YEJB100L4,WKF157RF97-YEJB112M4,WKF157RF97-YEJB132M4,WKF157RF97-YEJB160M4,WKF157RF97-YEJB80M4,WKF157RF97-YEJB90S4,WKF157RF97-YP100L4,WKF157RF97-YP112M4,WKF157RF97-YP132M4,WKF157RF97-YP160M4,WKF157RF97-YP80M4,WKF157RF97-YP90S4,WKF157RF97-YPB100L4,WKF157RF97-YPB112M4,WKF157RF97-YPB132M4,WKF157RF97-YPB160M4,WKF157RF97-YPB80M4,WKF157RF97-YPB90S4,WKF157RF97-YPE100L4,WKF157RF97-YPE112M4,WKF157RF97-YPE132M4,WKF157RF97-YPE160M4,WKF157RF97-YPE80M4,WKF157RF97-YPE90S4,WKF157RF97-YS100L4,WKF157RF97-YS112M4,WKF157RF97-YS132M4,WKF157RF97-YS160M4,WKF157RF97-YS80M4,WKF157RF97-YS90S4,WKF157RF97-YVB100L4,WKF157RF97-YVB112M4,WKF157RF97-YVB132M4,WKF157RF97-YVB160M4,WKF157RF97-YVB80M4,WKF157RF97-YVB90S4,WKF157RF97-YVP100L4,WKF157RF97-YVP112M4,WKF157RF97-YVP132M4,WKF157RF97-YVP160M4,WKF157RF97-YVP80M4,WKF157RF97-YVP90S4,WKF157RF97-YVPEJ100L4,WKF157RF97-YVPEJ112M4,WKF157RF97-YVPEJ132M4,WKF157RF97-YVPEJ160M4,WKF157RF97-YVPEJ80M4,WKF157RF97-YVPEJ90S4,JCKF157R97-Y100M4,JCKF157R97-Y112M4,JCKF157R97-Y132M4,JCKF157R97-Y160M4,JCKF157R97-Y80M4,JCKF157R97-Y90M4,JCKF157RF97-Y0.55KWF,JCKF157RF97-Y0.75KWF,JCKF157RF97-Y1.1KWF,JCKF157RF97-Y1.5KWF,JCKF157RF97-Y100M4,JCKF157RF97-Y112M4,JCKF157RF97-Y11KWF,JCKF157RF97-Y132M4,JCKF157RF97-Y15KWF,JCKF157RF97-Y160M4,JCKF157RF97-Y2.2KWF,JCKF157RF97-Y3KWF,JCKF157RF97-Y4KWF,JCKF157RF97-Y5.5KWF,JCKF157RF97-Y7.5KWF,JCKF157RF97-Y80M4,JCKF157RF97-Y90M4,JCKF157RF97-YB100L4,JCKF157RF97-YB112M4,JCKF157RF97-YB132M4,JCKF157RF97-YB160M4,JCKF157RF97-YB80M4,JCKF157RF97-YB90S4,JCKF157RF97-YDP100L4,JCKF157RF97-YDP112M4,JCKF157RF97-YDP132M4,JCKF157RF97-YDP160M4,JCKF157RF97-YDP80M4,JCKF157RF97-YDP90S4,JCKF157RF97-YE100L4,JCKF157RF97-YE112M4,JCKF157RF97-YE132M4,JCKF157RF97-YE160M4,JCKF157RF97-YE80M4,JCKF157RF97-YE90S4,JCKF157RF97-YEJ100L4,JCKF157RF97-YEJ112M4,JCKF157RF97-YEJ132M4,JCKF157RF97-YEJ160M4,JCKF157RF97-YEJ80M4,JCKF157RF97-YEJ90S4,JCKF157RF97-YEJB100L4,JCKF157RF97-YEJB112M4,JCKF157RF97-YEJB132M4,JCKF157RF97-YEJB160M4,JCKF157RF97-YEJB80M4,JCKF157RF97-YEJB90S4,JCKF157RF97-YP100L4,JCKF157RF97-YP112M4,JCKF157RF97-YP132M4,JCKF157RF97-YP160M4,JCKF157RF97-YP80M4,JCKF157RF97-YP90S4,JCKF157RF97-YPB100L4,JCKF157RF97-YPB112M4,JCKF157RF97-YPB132M4,JCKF157RF97-YPB160M4,JCKF157RF97-YPB80M4,JCKF157RF97-YPB90S4,JCKF157RF97-YPE100L4,JCKF157RF97-YPE112M4,JCKF157RF97-YPE132M4,JCKF157RF97-YPE160M4,JCKF157RF97-YPE80M4,JCKF157RF97-YPE90S4,JCKF157RF97-YS100L4,JCKF157RF97-YS112M4,JCKF157RF97-YS132M4,JCKF157RF97-YS160M4,JCKF157RF97-YS80M4,JCKF157RF97-YS90S4,JCKF157RF97-YVB100L4,JCKF157RF97-YVB112M4,JCKF157RF97-YVB132M4,JCKF157RF97-YVB160M4,JCKF157RF97-YVB80M4,JCKF157RF97-YVB90S4,JCKF157RF97-YVP100L4,JCKF157RF97-YVP112M4,JCKF157RF97-YVP132M4,JCKF157RF97-YVP160M4,JCKF157RF97-YVP80M4,JCKF157RF97-YVP90S4,JCKF157RF97-YVPEJ100L4,JCKF157RF97-YVPEJ112M4,JCKF157RF97-YVPEJ132M4,JCKF157RF97-YVPEJ160M4,JCKF157RF97-YVPEJ80M4,JCKF157RF97-YVPEJ90S4,NKF157R97-Y100M4,NKF157R97-Y112M4,NKF157R97-Y132M4,NKF157R97-Y160M4,NKF157R97-Y80M4,NKF157R97-Y90M4,NKF157RF97-Y0.55KWF,NKF157RF97-Y0.75KWF,NKF157RF97-Y1.1KWF,NKF157RF97-Y1.5KWF,NKF157RF97-Y100M4,NKF157RF97-Y112M4,NKF157RF97-Y11KWF,NKF157RF97-Y132M4,NKF157RF97-Y15KWF,NKF157RF97-Y160M4,NKF157RF97-Y2.2KWF,NKF157RF97-Y3KWF,NKF157RF97-Y4KWF,NKF157RF97-Y5.5KWF,NKF157RF97-Y7.5KWF,NKF157RF97-Y80M4,NKF157RF97-Y90M4,NKF157RF97-YB100L4,NKF157RF97-YB112M4,NKF157RF97-YB132M4,NKF157RF97-YB160M4,NKF157RF97-YB80M4,NKF157RF97-YB90S4,NKF157RF97-YDP100L4,NKF157RF97-YDP112M4,NKF157RF97-YDP132M4,NKF157RF97-YDP160M4,NKF157RF97-YDP80M4,NKF157RF97-YDP90S4,NKF157RF97-YE100L4,NKF157RF97-YE112M4,NKF157RF97-YE132M4,NKF157RF97-YE160M4,NKF157RF97-YE80M4,NKF157RF97-YE90S4,NKF157RF97-YEJ100L4,NKF157RF97-YEJ112M4,NKF157RF97-YEJ132M4,NKF157RF97-YEJ160M4,NKF157RF97-YEJ80M4,NKF157RF97-YEJ90S4,NKF157RF97-YEJB100L4,NKF157RF97-YEJB112M4,NKF157RF97-YEJB132M4,NKF157RF97-YEJB160M4,NKF157RF97-YEJB80M4,NKF157RF97-YEJB90S4,NKF157RF97-YP100L4,NKF157RF97-YP112M4,NKF157RF97-YP132M4,NKF157RF97-YP160M4,NKF157RF97-YP80M4,NKF157RF97-YP90S4,NKF157RF97-YPB100L4,NKF157RF97-YPB112M4,NKF157RF97-YPB132M4,NKF157RF97-YPB160M4,NKF157RF97-YPB80M4,NKF157RF97-YPB90S4,NKF157RF97-YPE100L4,NKF157RF97-YPE112M4,NKF157RF97-YPE132M4,NKF157RF97-YPE160M4,NKF157RF97-YPE80M4,NKF157RF97-YPE90S4,NKF157RF97-YS100L4,NKF157RF97-YS112M4,NKF157RF97-YS132M4,NKF157RF97-YS160M4,NKF157RF97-YS80M4,NKF157RF97-YS90S4,NKF157RF97-YVB100L4,NKF157RF97-YVB112M4,NKF157RF97-YVB132M4,NKF157RF97-YVB160M4,NKF157RF97-YVB80M4,NKF157RF97-YVB90S4,NKF157RF97-YVP100L4,NKF157RF97-YVP112M4,NKF157RF97-YVP132M4,NKF157RF97-YVP160M4,NKF157RF97-YVP80M4,NKF157RF97-YVP90S4,NKF157RF97-YVPEJ100L4,NKF157RF97-YVPEJ112M4,NKF157RF97-YVPEJ132M4,NKF157RF97-YVPEJ160M4,NKF157RF97-YVPEJ80M4,NKF157RF97-YVPEJ90S4,KWF157RW97-Y100M4,KWF157RW97-Y112M4,KWF157RW97-Y132M4,KWF157RW97-Y160M4,KWF157RW97-Y80M4,KWF157RW97-Y90M4,KWF157RWF97-Y0.55KWF,KWF157RWF97-Y0.75KWF,KWF157RWF97-Y1.1KWF,KWF157RWF97-Y1.5KWF,KWF157RWF97-Y100M4,KWF157RWF97-Y112M4,KWF157RWF97-Y11KWF,KWF157RWF97-Y132M4,KWF157RWF97-Y15KWF,KWF157RWF97-Y160M4,KWF157RWF97-Y2.2KWF,KWF157RWF97-Y3KWF,KWF157RWF97-Y4KWF,KWF157RWF97-Y5.5KWF,KWF157RWF97-Y7.5KWF,KWF157RWF97-Y80M4,KWF157RWF97-Y90M4,KWF157RWF97-YB100L4,KWF157RWF97-YB112M4,KWF157RWF97-YB132M4,KWF157RWF97-YB160M4,KWF157RWF97-YB80M4,KWF157RWF97-YB90S4,KWF157RWF97-YDP100L4,KWF157RWF97-YDP112M4,KWF157RWF97-YDP132M4,KWF157RWF97-YDP160M4,KWF157RWF97-YDP80M4,KWF157RWF97-YDP90S4,KWF157RWF97-YE100L4,KWF157RWF97-YE112M4,KWF157RWF97-YE132M4,KWF157RWF97-YE160M4,KWF157RWF97-YE80M4,KWF157RWF97-YE90S4,KWF157RWF97-YEJ100L4,KWF157RWF97-YEJ112M4,KWF157RWF97-YEJ132M4,KWF157RWF97-YEJ160M4,KWF157RWF97-YEJ80M4,KWF157RWF97-YEJ90S4,KWF157RWF97-YEJB100L4,KWF157RWF97-YEJB112M4,KWF157RWF97-YEJB132M4,KWF157RWF97-YEJB160M4,KWF157RWF97-YEJB80M4,KWF157RWF97-YEJB90S4,KWF157RWF97-YP100L4,KWF157RWF97-YP112M4,KWF157RWF97-YP132M4,KWF157RWF97-YP160M4,KWF157RWF97-YP80M4,KWF157RWF97-YP90S4,KWF157RWF97-YPB100L4,KWF157RWF97-YPB112M4,KWF157RWF97-YPB132M4,KWF157RWF97-YPB160M4,KWF157RWF97-YPB80M4,KWF157RWF97-YPB90S4,KWF157RWF97-YPE100L4,KWF157RWF97-YPE112M4,KWF157RWF97-YPE132M4,KWF157RWF97-YPE160M4,KWF157RWF97-YPE80M4,KWF157RWF97-YPE90S4,KWF157RWF97-YS100L4,KWF157RWF97-YS112M4,KWF157RWF97-YS132M4,KWF157RWF97-YS160M4,KWF157RWF97-YS80M4,KWF157RWF97-YS90S4,KWF157RWF97-YVB100L4,KWF157RWF97-YVB112M4,KWF157RWF97-YVB132M4,KWF157RWF97-YVB160M4,KWF157RWF97-YVB80M4,KWF157RWF97-YVB90S4,KWF157RWF97-YVP100L4,KWF157RWF97-YVP112M4,KWF157RWF97-YVP132M4,KWF157RWF97-YVP160M4,KWF157RWF97-YVP80M4,KWF157RWF97-YVP90S4,KWF157RWF97-YVPEJ100L4,KWF157RWF97-YVPEJ112M4,KWF157RWF97-YVPEJ132M4,KWF157RWF97-YVPEJ160M4,KWF157RWF97-YVPEJ80M4,KWF157RWF97-YVPEJ90S4,KF159R99-Y100M4,KF159R99-Y112M4,KF159R99-Y132M4,KF159R99-Y160M4,KF159R99-Y80M4,KF159R99-Y90M4,KF159RF99-Y0.55KWF,KF159RF99-Y0.75KWF,KF159RF99-Y1.1KWF,KF159RF99-Y1.5KWF,KF159RF99-Y100M4,KF159RF99-Y112M4,KF159RF99-Y11KWF,KF159RF99-Y132M4,KF159RF99-Y15KWF,KF159RF99-Y160M4,KF159RF99-Y2.2KWF,KF159RF99-Y3KWF,KF159RF99-Y4KWF,KF159RF99-Y5.5KWF,KF159RF99-Y7.5KWF,KF159RF99-Y80M4,KF159RF99-Y90M4,KF159RF99-YB100L4,KF159RF99-YB112M4,KF159RF99-YB132M4,KF159RF99-YB160M4,KF159RF99-YB80M4,KF159RF99-YB90S4,KF159RF99-YDP100L4,KF159RF99-YDP112M4,KF159RF99-YDP132M4,KF159RF99-YDP160M4,KF159RF99-YDP80M4,KF159RF99-YDP90S4,KF159RF99-YE100L4,KF159RF99-YE112M4,KF159RF99-YE132M4,KF159RF99-YE160M4,KF159RF99-YE80M4,KF159RF99-YE90S4,KF159RF99-YEJ100L4,KF159RF99-YEJ112M4,KF159RF99-YEJ132M4,KF159RF99-YEJ160M4,KF159RF99-YEJ80M4,KF159RF99-YEJ90S4,KF159RF99-YEJB100L4,KF159RF99-YEJB112M4,KF159RF99-YEJB132M4,KF159RF99-YEJB160M4,KF159RF99-YEJB80M4,KF159RF99-YEJB90S4,KF159RF99-YP100L4,KF159RF99-YP112M4,KF159RF99-YP132M4,KF159RF99-YP160M4,KF159RF99-YP80M4,KF159RF99-YP90S4,KF159RF99-YPB100L4,KF159RF99-YPB112M4,KF159RF99-YPB132M4,KF159RF99-YPB160M4,KF159RF99-YPB80M4,KF159RF99-YPB90S4,KF159RF99-YPE100L4,KF159RF99-YPE112M4,KF159RF99-YPE132M4,KF159RF99-YPE160M4,KF159RF99-YPE80M4,KF159RF99-YPE90S4,KF159RF99-YS100L4,KF159RF99-YS112M4,KF159RF99-YS132M4,KF159RF99-YS160M4,KF159RF99-YS80M4,KF159RF99-YS90S4,KF159RF99-YVB100L4,KF159RF99-YVB112M4,KF159RF99-YVB132M4,KF159RF99-YVB160M4,KF159RF99-YVB80M4,KF159RF99-YVB90S4,KF159RF99-YVP100L4,KF159RF99-YVP112M4,KF159RF99-YVP132M4,KF159RF99-YVP160M4,KF159RF99-YVP80M4,KF159RF99-YVP90S4,KF159RF99-YVPEJ100L4,KF159RF99-YVPEJ112M4,KF159RF99-YVPEJ132M4,KF159RF99-YVPEJ160M4,KF159RF99-YVPEJ80M4,KF159RF99-YVPEJ90S4。

KF159R99減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-kfxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦型號:K159減速機

關鍵詞:帶伺服減速機_伺服電機減速機_伺服電機減速器_伺服減速器_大扭力減速機_大扭力減速器_交流減速機_GKF系列減速機_KF系列減速機_伺服電機減速機一體機_伺服減速機一體機_KF系列減速器

KF系列齒輪減速電機型號:KF39減速機,KF49減速機,KF59減速機,KF69減速機,KF79減速機,KF89減速機,KF99減速機,KF109減速機,KF129減速機,KF159減速機,KF167減速機,KF187減速機

KF系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:  KF159R99錐齒輪減速機三維圖紙 NKF157RF97減速器參數 JCKF157R97減速電機生產廠家

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KF159R99減速機三維圖紙下載3D 點擊下載
KF159R99減速機選型樣本 點擊下載
