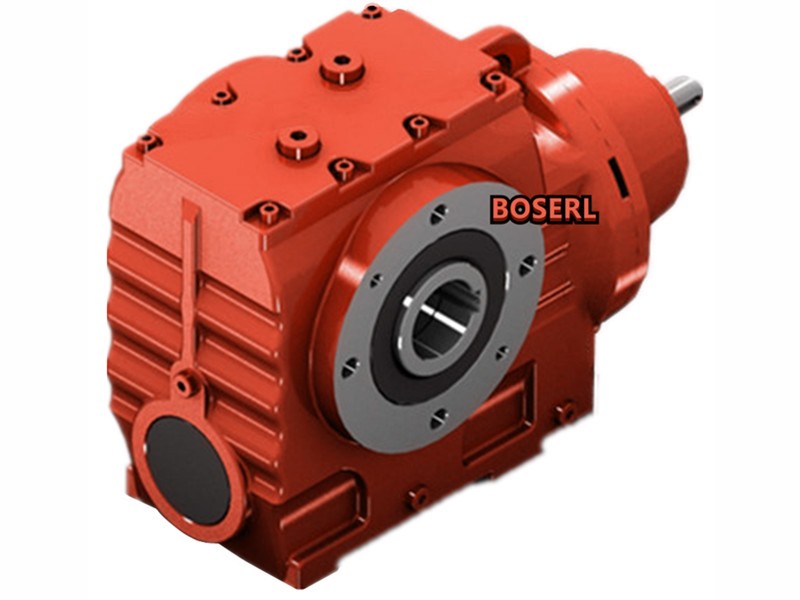

SA49減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA49減速機選型樣本。

SA49-BEJB1.1KW-4P-17.62-M2-180°

SA：系列代號

49：減速機規格代號

BEJB：電機

1.1KW：電機功率

4P：電機級數

17.62：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

SA49減速機扭力臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA49減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA49減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA49減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

SA49減速機型號：

WSA47-Y0.12KW，WSA47-Y0.18KW，WSA47-Y0.25KW，WSA47-Y0.37KW，WSA47-Y0.55KW，WSA47-Y0.75KW，WSA47-Y1.1KW，WSA47-Y1.5KW，WSA47-Y63M4，WSA47-Y71M4，WSA47-Y80M4，WSA47-Y90M4，WSA47-YB63M4，WSA47-YB71M4，WSA47-YB80M4，WSA47-YB90M4，WSA47-YDP63M4，WSA47-YDP71M4，WSA47-YDP80M4，WSA47-YDP90M4，WSA47-YE63M4，WSA47-YE71M4，WSA47-YE80M4，WSA47-YE90M4，WSA47-YEJ63M4，WSA47-YEJ71M4，WSA47-YEJ80M4，WSA47-YEJ90M4，WSA47-YEJB63M4，WSA47-YEJB71M4，WSA47-YEJB80M4，WSA47-YEJB90M4，WSA47-YP63M4，WSA47-YP71M4，WSA47-YP80M4，WSA47-YP90M4，WSA47-YPB63M4，WSA47-YPB71M4，WSA47-YPB80M4，WSA47-YPB90M4，WSA47-YPE63M4，WSA47-YPE71M4，WSA47-YPE80M4，WSA47-YPE90M4，WSA47-YS63M4，WSA47-YS71M4，WSA47-YS80M4，WSA47-YS90M4，WSA47-YVB63M4，WSA47-YVB71M4，WSA47-YVB80M4，WSA47-YVB90M4，WSA47-YVP63M4，WSA47-YVP71M4，WSA47-YVP80M4，WSA47-YVP90M4，WSA47-YVPEJ63M4，WSA47-YVPEJ71M4，WSA47-YVPEJ80M4，WSA47-YVPEJ90M4，NSA47-Y0.12KW，NSA47-Y0.18KW，NSA47-Y0.25KW，NSA47-Y0.37KW，NSA47-Y0.55KW，NSA47-Y0.75KW，NSA47-Y1.1KW，NSA47-Y1.5KW，NSA47-Y63M4，NSA47-Y71M4，NSA47-Y80M4，NSA47-Y90M4，NSA47-YB63M4，NSA47-YB71M4，NSA47-YB80M4，NSA47-YB90M4，NSA47-YDP63M4，NSA47-YDP71M4，NSA47-YDP80M4，NSA47-YDP90M4，NSA47-YE63M4，NSA47-YE71M4，NSA47-YE80M4，NSA47-YE90M4，NSA47-YEJ63M4，NSA47-YEJ71M4，NSA47-YEJ80M4，NSA47-YEJ90M4，NSA47-YEJB63M4，NSA47-YEJB71M4，NSA47-YEJB80M4，NSA47-YEJB90M4，NSA47-YP63M4，NSA47-YP71M4，NSA47-YP80M4，NSA47-YP90M4，NSA47-YPB63M4，NSA47-YPB71M4，NSA47-YPB80M4，NSA47-YPB90M4，NSA47-YPE63M4，NSA47-YPE71M4，NSA47-YPE80M4，NSA47-YPE90M4，NSA47-YS63M4，NSA47-YS71M4，NSA47-YS80M4，NSA47-YS90M4，NSA47-YVB63M4，NSA47-YVB71M4，NSA47-YVB80M4，NSA47-YVB90M4，NSA47-YVP63M4，NSA47-YVP71M4，NSA47-YVP80M4，NSA47-YVP90M4，NSA47-YVPEJ63M4，NSA47-YVPEJ71M4，NSA47-YVPEJ80M4，NSA47-YVPEJ90M4，ASA47-Y0.12KW，ASA47-Y0.18KW，ASA47-Y0.25KW，ASA47-Y0.37KW，ASA47-Y0.55KW，ASA47-Y0.75KW，ASA47-Y1.1KW，ASA47-Y1.5KW，ASA47-Y63M4，ASA47-Y71M4，ASA47-Y80M4，ASA47-Y90M4，ASA47-YB63M4，ASA47-YB71M4，ASA47-YB80M4，ASA47-YB90M4，ASA47-YDP63M4，ASA47-YDP71M4，ASA47-YDP80M4，ASA47-YDP90M4，ASA47-YE63M4，ASA47-YE71M4，ASA47-YE80M4，ASA47-YE90M4，ASA47-YEJ63M4，ASA47-YEJ71M4，ASA47-YEJ80M4，ASA47-YEJ90M4，ASA47-YEJB63M4，ASA47-YEJB71M4，ASA47-YEJB80M4，ASA47-YEJB90M4，ASA47-YP63M4，ASA47-YP71M4，ASA47-YP80M4，ASA47-YP90M4，ASA47-YPB63M4，ASA47-YPB71M4，ASA47-YPB80M4，ASA47-YPB90M4，ASA47-YPE63M4，ASA47-YPE71M4，ASA47-YPE80M4，ASA47-YPE90M4，ASA47-YS63M4，ASA47-YS71M4，ASA47-YS80M4，ASA47-YS90M4，ASA47-YVB63M4，ASA47-YVB71M4，ASA47-YVB80M4，ASA47-YVB90M4，ASA47-YVP63M4，ASA47-YVP71M4，ASA47-YVP80M4，ASA47-YVP90M4，ASA47-YVPEJ63M4，ASA47-YVPEJ71M4，ASA47-YVPEJ80M4，ASA47-YVPEJ90M4，SSA47-Y0.12KW，SSA47-Y0.18KW，SSA47-Y0.25KW，SSA47-Y0.37KW，SSA47-Y0.55KW，SSA47-Y0.75KW，SSA47-Y1.1KW，SSA47-Y1.5KW，SSA47-Y63M4，SSA47-Y71M4，SSA47-Y80M4，SSA47-Y90M4，SSA47-YB63M4，SSA47-YB71M4，SSA47-YB80M4，SSA47-YB90M4，SSA47-YDP63M4，SSA47-YDP71M4，SSA47-YDP80M4，SSA47-YDP90M4，SSA47-YE63M4，SSA47-YE71M4，SSA47-YE80M4，SSA47-YE90M4，SSA47-YEJ63M4，SSA47-YEJ71M4，SSA47-YEJ80M4，SSA47-YEJ90M4，SSA47-YEJB63M4，SSA47-YEJB71M4，SSA47-YEJB80M4，SSA47-YEJB90M4，SSA47-YP63M4，SSA47-YP71M4，SSA47-YP80M4，SSA47-YP90M4，SSA47-YPB63M4，SSA47-YPB71M4，SSA47-YPB80M4，SSA47-YPB90M4，SSA47-YPE63M4，SSA47-YPE71M4，SSA47-YPE80M4，SSA47-YPE90M4，SSA47-YS63M4，SSA47-YS71M4，SSA47-YS80M4，SSA47-YS90M4，SSA47-YVB63M4，SSA47-YVB71M4，SSA47-YVB80M4，SSA47-YVB90M4，SSA47-YVP63M4，SSA47-YVP71M4，SSA47-YVP80M4，SSA47-YVP90M4，SSA47-YVPEJ63M4，SSA47-YVPEJ71M4，SSA47-YVPEJ80M4，SSA47-YVPEJ90M4，GSA49-Y0.12KW，GSA49-Y0.18KW，GSA49-Y0.25KW，GSA49-Y0.37KW，GSA49-Y0.55KW，GSA49-Y0.75KW，GSA49-Y1.1KW，GSA49-Y1.5KW，GSA49-Y63M4，GSA49-Y71M4，GSA49-Y80M4，GSA49-Y90M4，GSA49-YB63M4，GSA49-YB71M4，GSA49-YB80M4，GSA49-YB90M4，GSA49-YDP63M4，GSA49-YDP71M4，GSA49-YDP80M4，GSA49-YDP90M4，GSA49-YE63M4，GSA49-YE71M4，GSA49-YE80M4，GSA49-YE90M4，GSA49-YEJ63M4，GSA49-YEJ71M4，GSA49-YEJ80M4，GSA49-YEJ90M4，GSA49-YEJB63M4，GSA49-YEJB71M4，GSA49-YEJB80M4，GSA49-YEJB90M4，GSA49-YP63M4，GSA49-YP71M4，GSA49-YP80M4，GSA49-YP90M4，GSA49-YPB63M4，GSA49-YPB71M4，GSA49-YPB80M4，GSA49-YPB90M4，GSA49-YPE63M4，GSA49-YPE71M4，GSA49-YPE80M4，GSA49-YPE90M4，GSA49-YS63M4，GSA49-YS71M4，GSA49-YS80M4，GSA49-YS90M4，GSA49-YVB63M4，GSA49-YVB71M4，GSA49-YVB80M4，GSA49-YVB90M4，GSA49-YVP63M4，GSA49-YVP71M4，GSA49-YVP80M4，GSA49-YVP90M4，GSA49-YVPEJ63M4，GSA49-YVPEJ71M4，GSA49-YVPEJ80M4，GSA49-YVPEJ90M4。
