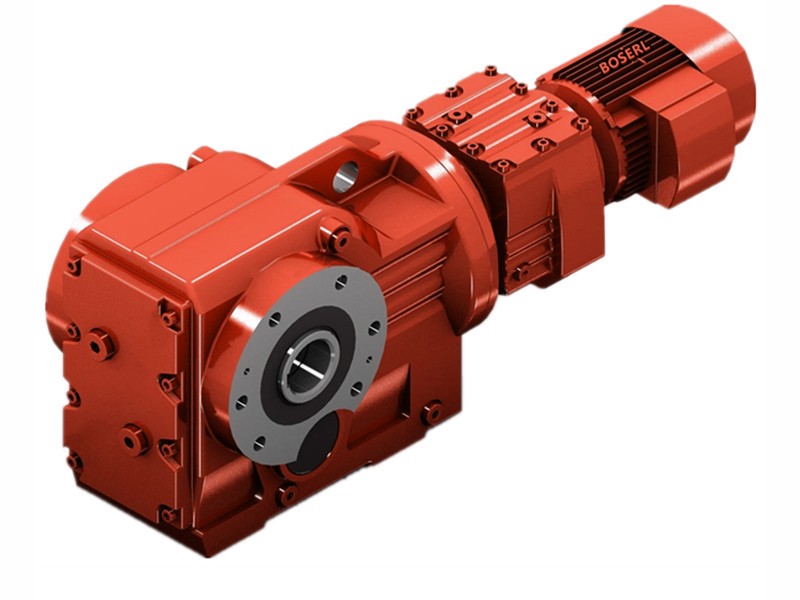

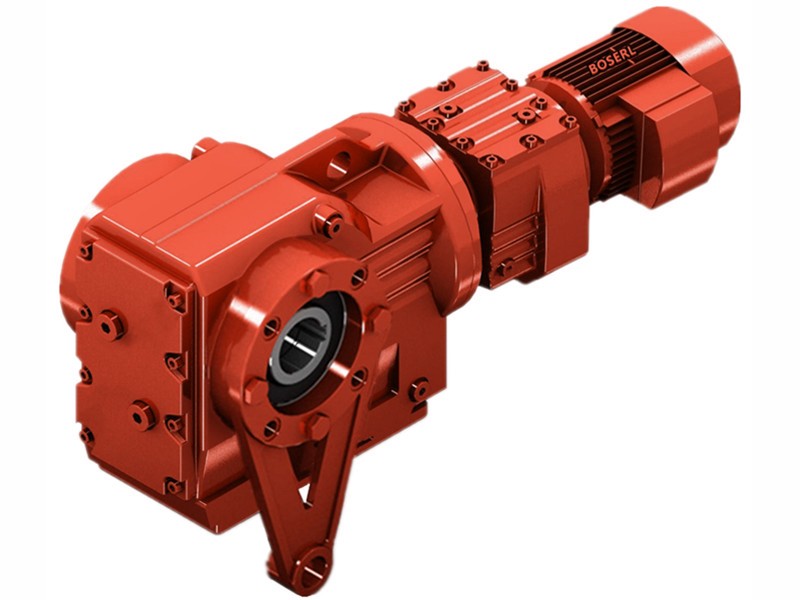

KA189R99減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189R99減速機選型樣本。
KA189R99-Y11KW-4P-527-M3-180°
KA/R:系列代號
189/99:減速機規格代號
Y:電機
11KW:電機功率
4P:電機級數
527:減速機傳動比
M3:減速機安裝位置
180°:接線盒位置
KA189R99減速機電機保養檢查:
KA189R99減速機電機一般檢查:定期檢查電機。檢查頻率取決于周圍空氣的潮濕程度以及當地的天氣狀況。可預先通過試驗確定,并嚴格遵守;保持電機清潔和自然通風。在多灰塵環境中使用電機時必須定期檢查通風系統并進行清潔;檢查油封的狀況,必要時應更換;檢查接線和安裝螺栓的狀況。齒輪減速電機
做一般定期檢查時,請需注意:溫度上升齒輪減速電機為F級絕緣,全密閉外扇構造,所以電機表面溫度比周圍高50°C左右即屬正常;如果溫度高于以上時,必須停機檢查(因素:電機或負載傳動系統異常)。
KA189R99減速機剎車電機剎車片因長時間使用會有磨損,請依據剎車間隙值進行調整(正常間隙值0.3~0.7mm)。
KA189R99減速機電機異常振動、噪音正常情況,本機幾乎沒有振動噪音。若有某些安裝異常使用,會產生振動噪音,所以請特別留意(當空載噪音值在70dB(A)/1M以下時,是被容許的);電機通風口有時會積聚雜物妨礙通風,所以請清除電機外部,以確保電機正常運行溫度;定期檢查時,請用兆歐表以500V測試電機繞組之絕緣阻抗,對地電阻應1MQ以上,以避免漏電之風險。
測定絕緣電阻時,請勿觸摸端子。否則有可能會導致觸電。減速電機工作時的表面溫度較高,請勿赤手觸摸。否則有可能會導致燙傷。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞。單相電機的啟動用電容器的通電部分,在未完全放電前請勿觸及。否則有可能會導致觸電。使電機反轉時,請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控。直角減速機
KA189R99減速機電機不轉解決方案:
電源未接通或接觸不良或電源電壓過低,排查維修;
過載跳閘,選擇大容量電機或減輕負載;
機械故障,檢查電機和傳動裝置是否可以自由轉動。檢查軸承和潤滑脂;
電機卡死,更換電機;
電源連接錯誤,核對接線是否與電機接線圖一致;空心軸減速機
定子繞組斷路,用萬用表歐姆檔檢查,若有相無電阻,則是此原因,確認后換線圈繞組;
定子繞組匝間短路,用萬用表歐姆檔檢查,若有相電阻與標佳值偏差夭于10%,則是此原因,確認后換線圈繞組;
定子繞組對地短路,用萬用表歐姆檔檢查,若線圈與機殼間有電阻小于1000歐,則是此原因,確認后換線圈繞組;
定子繞組接線錯誤,拆開電機找出錯誤,重新接線;
定子線圈的6引線接錯,換定子線圈。
KA189R99減速電機型號:
YQKA187R97-Y100M4,YQKA187R97-Y112M4,YQKA187R97-Y132M4,YQKA187R97-Y160M4,YQKA187R97-Y80M4,YQKA187R97-Y90M4,YQKA187RF97-Y0.55KWA,YQKA187RF97-Y0.75KWA,YQKA187RF97-Y1.1KWA,YQKA187RF97-Y1.5KWA,YQKA187RF97-Y100M4,YQKA187RF97-Y112M4,YQKA187RF97-Y11KWA,YQKA187RF97-Y132M4,YQKA187RF97-Y15KWA,YQKA187RF97-Y160M4,YQKA187RF97-Y2.2KWA,YQKA187RF97-Y3KWA,YQKA187RF97-Y4KWA,YQKA187RF97-Y5.5KWA,YQKA187RF97-Y7.5KWA,YQKA187RF97-Y80M4,YQKA187RF97-Y90M4,YQKA187RF97-YB100L4,YQKA187RF97-YB112M4,YQKA187RF97-YB132M4,YQKA187RF97-YB160M4,YQKA187RF97-YB80M4,YQKA187RF97-YB90S4,YQKA187RF97-YDP100L4,YQKA187RF97-YDP112M4,YQKA187RF97-YDP132M4,YQKA187RF97-YDP160M4,YQKA187RF97-YDP80M4,YQKA187RF97-YDP90S4,YQKA187RF97-YE100L4,YQKA187RF97-YE112M4,YQKA187RF97-YE132M4,YQKA187RF97-YE160M4,YQKA187RF97-YE80M4,YQKA187RF97-YE90S4,YQKA187RF97-YEJ100L4,YQKA187RF97-YEJ112M4,YQKA187RF97-YEJ132M4,YQKA187RF97-YEJ160M4,YQKA187RF97-YEJ80M4,YQKA187RF97-YEJ90S4,YQKA187RF97-YEJB100L4,YQKA187RF97-YEJB112M4,YQKA187RF97-YEJB132M4,YQKA187RF97-YEJB160M4,YQKA187RF97-YEJB80M4,YQKA187RF97-YEJB90S4,YQKA187RF97-YP100L4,YQKA187RF97-YP112M4,YQKA187RF97-YP132M4,YQKA187RF97-YP160M4,YQKA187RF97-YP80M4,YQKA187RF97-YP90S4,YQKA187RF97-YPB100L4,YQKA187RF97-YPB112M4,YQKA187RF97-YPB132M4,YQKA187RF97-YPB160M4,YQKA187RF97-YPB80M4,YQKA187RF97-YPB90S4,YQKA187RF97-YPE100L4,YQKA187RF97-YPE112M4,YQKA187RF97-YPE132M4,YQKA187RF97-YPE160M4,YQKA187RF97-YPE80M4,YQKA187RF97-YPE90S4,YQKA187RF97-YS100L4,YQKA187RF97-YS112M4,YQKA187RF97-YS132M4,YQKA187RF97-YS160M4,YQKA187RF97-YS80M4,YQKA187RF97-YS90S4,YQKA187RF97-YVB100L4,YQKA187RF97-YVB112M4,YQKA187RF97-YVB132M4,YQKA187RF97-YVB160M4,YQKA187RF97-YVB80M4,YQKA187RF97-YVB90S4,YQKA187RF97-YVP100L4,YQKA187RF97-YVP112M4,YQKA187RF97-YVP132M4,YQKA187RF97-YVP160M4,YQKA187RF97-YVP80M4,YQKA187RF97-YVP90S4,YQKA187RF97-YVPEJ100L4,YQKA187RF97-YVPEJ112M4,YQKA187RF97-YVPEJ132M4,YQKA187RF97-YVPEJ160M4,YQKA187RF97-YVPEJ80M4,YQKA187RF97-YVPEJ90S4,AKA187R97-Y100M4,AKA187R97-Y112M4,AKA187R97-Y132M4,AKA187R97-Y160M4,AKA187R97-Y80M4,AKA187R97-Y90M4,AKA187RF97-Y0.55KWA,AKA187RF97-Y0.75KWA,AKA187RF97-Y1.1KWA,AKA187RF97-Y1.5KWA,AKA187RF97-Y100M4,AKA187RF97-Y112M4,AKA187RF97-Y11KWA,AKA187RF97-Y132M4,AKA187RF97-Y15KWA,AKA187RF97-Y160M4,AKA187RF97-Y2.2KWA,AKA187RF97-Y3KWA,AKA187RF97-Y4KWA,AKA187RF97-Y5.5KWA,AKA187RF97-Y7.5KWA,AKA187RF97-Y80M4,AKA187RF97-Y90M4,AKA187RF97-YB100L4,AKA187RF97-YB112M4,AKA187RF97-YB132M4,AKA187RF97-YB160M4,AKA187RF97-YB80M4,AKA187RF97-YB90S4,AKA187RF97-YDP100L4,AKA187RF97-YDP112M4,AKA187RF97-YDP132M4,AKA187RF97-YDP160M4,AKA187RF97-YDP80M4,AKA187RF97-YDP90S4,AKA187RF97-YE100L4,AKA187RF97-YE112M4,AKA187RF97-YE132M4,AKA187RF97-YE160M4,AKA187RF97-YE80M4,AKA187RF97-YE90S4,AKA187RF97-YEJ100L4,AKA187RF97-YEJ112M4,AKA187RF97-YEJ132M4,AKA187RF97-YEJ160M4,AKA187RF97-YEJ80M4,AKA187RF97-YEJ90S4,AKA187RF97-YEJB100L4,AKA187RF97-YEJB112M4,AKA187RF97-YEJB132M4,AKA187RF97-YEJB160M4,AKA187RF97-YEJB80M4,AKA187RF97-YEJB90S4,AKA187RF97-YP100L4,AKA187RF97-YP112M4,AKA187RF97-YP132M4,AKA187RF97-YP160M4,AKA187RF97-YP80M4,AKA187RF97-YP90S4,AKA187RF97-YPB100L4,AKA187RF97-YPB112M4,AKA187RF97-YPB132M4,AKA187RF97-YPB160M4,AKA187RF97-YPB80M4,AKA187RF97-YPB90S4,AKA187RF97-YPE100L4,AKA187RF97-YPE112M4,AKA187RF97-YPE132M4,AKA187RF97-YPE160M4,AKA187RF97-YPE80M4,AKA187RF97-YPE90S4,AKA187RF97-YS100L4,AKA187RF97-YS112M4,AKA187RF97-YS132M4,AKA187RF97-YS160M4,AKA187RF97-YS80M4,AKA187RF97-YS90S4,AKA187RF97-YVB100L4,AKA187RF97-YVB112M4,AKA187RF97-YVB132M4,AKA187RF97-YVB160M4,AKA187RF97-YVB80M4,AKA187RF97-YVB90S4,AKA187RF97-YVP100L4,AKA187RF97-YVP112M4,AKA187RF97-YVP132M4,AKA187RF97-YVP160M4,AKA187RF97-YVP80M4,AKA187RF97-YVP90S4,AKA187RF97-YVPEJ100L4,AKA187RF97-YVPEJ112M4,AKA187RF97-YVPEJ132M4,AKA187RF97-YVPEJ160M4,AKA187RF97-YVPEJ80M4,AKA187RF97-YVPEJ90S4,SKA187R97-Y100M4,SKA187R97-Y112M4,SKA187R97-Y132M4,SKA187R97-Y160M4,SKA187R97-Y80M4,SKA187R97-Y90M4,SKA187RF97-Y0.55KWA,SKA187RF97-Y0.75KWA,SKA187RF97-Y1.1KWA,SKA187RF97-Y1.5KWA,SKA187RF97-Y100M4,SKA187RF97-Y112M4,SKA187RF97-Y11KWA,SKA187RF97-Y132M4,SKA187RF97-Y15KWA,SKA187RF97-Y160M4,SKA187RF97-Y2.2KWA,SKA187RF97-Y3KWA,SKA187RF97-Y4KWA,SKA187RF97-Y5.5KWA,SKA187RF97-Y7.5KWA,SKA187RF97-Y80M4,SKA187RF97-Y90M4,SKA187RF97-YB100L4,SKA187RF97-YB112M4,SKA187RF97-YB132M4,SKA187RF97-YB160M4,SKA187RF97-YB80M4,SKA187RF97-YB90S4,SKA187RF97-YDP100L4,SKA187RF97-YDP112M4,SKA187RF97-YDP132M4,SKA187RF97-YDP160M4,SKA187RF97-YDP80M4,SKA187RF97-YDP90S4,SKA187RF97-YE100L4,SKA187RF97-YE112M4,SKA187RF97-YE132M4,SKA187RF97-YE160M4,SKA187RF97-YE80M4,SKA187RF97-YE90S4,SKA187RF97-YEJ100L4,SKA187RF97-YEJ112M4,SKA187RF97-YEJ132M4,SKA187RF97-YEJ160M4,SKA187RF97-YEJ80M4,SKA187RF97-YEJ90S4,SKA187RF97-YEJB100L4,SKA187RF97-YEJB112M4,SKA187RF97-YEJB132M4,SKA187RF97-YEJB160M4,SKA187RF97-YEJB80M4,SKA187RF97-YEJB90S4,SKA187RF97-YP100L4,SKA187RF97-YP112M4,SKA187RF97-YP132M4,SKA187RF97-YP160M4,SKA187RF97-YP80M4,SKA187RF97-YP90S4,SKA187RF97-YPB100L4,SKA187RF97-YPB112M4,SKA187RF97-YPB132M4,SKA187RF97-YPB160M4,SKA187RF97-YPB80M4,SKA187RF97-YPB90S4,SKA187RF97-YPE100L4,SKA187RF97-YPE112M4,SKA187RF97-YPE132M4,SKA187RF97-YPE160M4,SKA187RF97-YPE80M4,SKA187RF97-YPE90S4,SKA187RF97-YS100L4,SKA187RF97-YS112M4,SKA187RF97-YS132M4,SKA187RF97-YS160M4,SKA187RF97-YS80M4,SKA187RF97-YS90S4,SKA187RF97-YVB100L4,SKA187RF97-YVB112M4,SKA187RF97-YVB132M4,SKA187RF97-YVB160M4,SKA187RF97-YVB80M4,SKA187RF97-YVB90S4,SKA187RF97-YVP100L4,SKA187RF97-YVP112M4,SKA187RF97-YVP132M4,SKA187RF97-YVP160M4,SKA187RF97-YVP80M4,SKA187RF97-YVP90S4,SKA187RF97-YVPEJ100L4,SKA187RF97-YVPEJ112M4,SKA187RF97-YVPEJ132M4,SKA187RF97-YVPEJ160M4,SKA187RF97-YVPEJ80M4,SKA187RF97-YVPEJ90S4,XDKA187R97-Y100M4,XDKA187R97-Y112M4,XDKA187R97-Y132M4,XDKA187R97-Y160M4,XDKA187R97-Y80M4,XDKA187R97-Y90M4,XDKA187RF97-Y0.55KWA,XDKA187RF97-Y0.75KWA,XDKA187RF97-Y1.1KWA,XDKA187RF97-Y1.5KWA,XDKA187RF97-Y100M4,XDKA187RF97-Y112M4,XDKA187RF97-Y11KWA,XDKA187RF97-Y132M4,XDKA187RF97-Y15KWA,XDKA187RF97-Y160M4,XDKA187RF97-Y2.2KWA,XDKA187RF97-Y3KWA,XDKA187RF97-Y4KWA,XDKA187RF97-Y5.5KWA,XDKA187RF97-Y7.5KWA,XDKA187RF97-Y80M4,XDKA187RF97-Y90M4,XDKA187RF97-YB100L4,XDKA187RF97-YB112M4,XDKA187RF97-YB132M4,XDKA187RF97-YB160M4,XDKA187RF97-YB80M4,XDKA187RF97-YB90S4,XDKA187RF97-YDP100L4,XDKA187RF97-YDP112M4,XDKA187RF97-YDP132M4,XDKA187RF97-YDP160M4,XDKA187RF97-YDP80M4,XDKA187RF97-YDP90S4,XDKA187RF97-YE100L4,XDKA187RF97-YE112M4,XDKA187RF97-YE132M4,XDKA187RF97-YE160M4,XDKA187RF97-YE80M4,XDKA187RF97-YE90S4,XDKA187RF97-YEJ100L4,XDKA187RF97-YEJ112M4,XDKA187RF97-YEJ132M4,XDKA187RF97-YEJ160M4,XDKA187RF97-YEJ80M4,XDKA187RF97-YEJ90S4,XDKA187RF97-YEJB100L4,XDKA187RF97-YEJB112M4,XDKA187RF97-YEJB132M4,XDKA187RF97-YEJB160M4,XDKA187RF97-YEJB80M4,XDKA187RF97-YEJB90S4,XDKA187RF97-YP100L4,XDKA187RF97-YP112M4,XDKA187RF97-YP132M4,XDKA187RF97-YP160M4,XDKA187RF97-YP80M4,XDKA187RF97-YP90S4,XDKA187RF97-YPB100L4,XDKA187RF97-YPB112M4,XDKA187RF97-YPB132M4,XDKA187RF97-YPB160M4,XDKA187RF97-YPB80M4,XDKA187RF97-YPB90S4,XDKA187RF97-YPE100L4,XDKA187RF97-YPE112M4,XDKA187RF97-YPE132M4,XDKA187RF97-YPE160M4,XDKA187RF97-YPE80M4,XDKA187RF97-YPE90S4,XDKA187RF97-YS100L4,XDKA187RF97-YS112M4,XDKA187RF97-YS132M4,XDKA187RF97-YS160M4,XDKA187RF97-YS80M4,XDKA187RF97-YS90S4,XDKA187RF97-YVB100L4,XDKA187RF97-YVB112M4,XDKA187RF97-YVB132M4,XDKA187RF97-YVB160M4,XDKA187RF97-YVB80M4,XDKA187RF97-YVB90S4,XDKA187RF97-YVP100L4,XDKA187RF97-YVP112M4,XDKA187RF97-YVP132M4,XDKA187RF97-YVP160M4,XDKA187RF97-YVP80M4,XDKA187RF97-YVP90S4,XDKA187RF97-YVPEJ100L4,XDKA187RF97-YVPEJ112M4,XDKA187RF97-YVPEJ132M4,XDKA187RF97-YVPEJ160M4,XDKA187RF97-YVPEJ80M4,XDKA187RF97-YVPEJ90S4,WKA187R97-Y100M4,WKA187R97-Y112M4,WKA187R97-Y132M4,WKA187R97-Y160M4,WKA187R97-Y80M4,WKA187R97-Y90M4,WKA187RF97-Y0.55KWA,WKA187RF97-Y0.75KWA,WKA187RF97-Y1.1KWA,WKA187RF97-Y1.5KWA,WKA187RF97-Y100M4,WKA187RF97-Y112M4,WKA187RF97-Y11KWA,WKA187RF97-Y132M4,WKA187RF97-Y15KWA,WKA187RF97-Y160M4,WKA187RF97-Y2.2KWA,WKA187RF97-Y3KWA,WKA187RF97-Y4KWA,WKA187RF97-Y5.5KWA,WKA187RF97-Y7.5KWA,WKA187RF97-Y80M4,WKA187RF97-Y90M4,WKA187RF97-YB100L4,WKA187RF97-YB112M4,WKA187RF97-YB132M4,WKA187RF97-YB160M4,WKA187RF97-YB80M4,WKA187RF97-YB90S4,WKA187RF97-YDP100L4,WKA187RF97-YDP112M4,WKA187RF97-YDP132M4,WKA187RF97-YDP160M4,WKA187RF97-YDP80M4,WKA187RF97-YDP90S4,WKA187RF97-YE100L4,WKA187RF97-YE112M4,WKA187RF97-YE132M4,WKA187RF97-YE160M4,WKA187RF97-YE80M4,WKA187RF97-YE90S4,WKA187RF97-YEJ100L4,WKA187RF97-YEJ112M4,WKA187RF97-YEJ132M4,WKA187RF97-YEJ160M4,WKA187RF97-YEJ80M4,WKA187RF97-YEJ90S4,WKA187RF97-YEJB100L4,WKA187RF97-YEJB112M4,WKA187RF97-YEJB132M4,WKA187RF97-YEJB160M4,WKA187RF97-YEJB80M4,WKA187RF97-YEJB90S4,WKA187RF97-YP100L4,WKA187RF97-YP112M4,WKA187RF97-YP132M4,WKA187RF97-YP160M4,WKA187RF97-YP80M4,WKA187RF97-YP90S4,WKA187RF97-YPB100L4,WKA187RF97-YPB112M4,WKA187RF97-YPB132M4,WKA187RF97-YPB160M4,WKA187RF97-YPB80M4,WKA187RF97-YPB90S4,WKA187RF97-YPE100L4,WKA187RF97-YPE112M4,WKA187RF97-YPE132M4,WKA187RF97-YPE160M4,WKA187RF97-YPE80M4,WKA187RF97-YPE90S4,WKA187RF97-YS100L4,WKA187RF97-YS112M4,WKA187RF97-YS132M4,WKA187RF97-YS160M4,WKA187RF97-YS80M4,WKA187RF97-YS90S4,WKA187RF97-YVB100L4,WKA187RF97-YVB112M4,WKA187RF97-YVB132M4,WKA187RF97-YVB160M4,WKA187RF97-YVB80M4,WKA187RF97-YVB90S4,WKA187RF97-YVP100L4,WKA187RF97-YVP112M4,WKA187RF97-YVP132M4,WKA187RF97-YVP160M4,WKA187RF97-YVP80M4,WKA187RF97-YVP90S4,WKA187RF97-YVPEJ100L4,WKA187RF97-YVPEJ112M4,WKA187RF97-YVPEJ132M4,WKA187RF97-YVPEJ160M4,WKA187RF97-YVPEJ80M4,WKA187RF97-YVPEJ90S4,NKA187R97-Y100M4,NKA187R97-Y112M4,NKA187R97-Y132M4,NKA187R97-Y160M4,NKA187R97-Y80M4,NKA187R97-Y90M4,NKA187RF97-Y0.55KWA,NKA187RF97-Y0.75KWA,NKA187RF97-Y1.1KWA,NKA187RF97-Y1.5KWA,NKA187RF97-Y100M4,NKA187RF97-Y112M4,NKA187RF97-Y11KWA,NKA187RF97-Y132M4,NKA187RF97-Y15KWA,NKA187RF97-Y160M4,NKA187RF97-Y2.2KWA,NKA187RF97-Y3KWA,NKA187RF97-Y4KWA,NKA187RF97-Y5.5KWA,NKA187RF97-Y7.5KWA,NKA187RF97-Y80M4,NKA187RF97-Y90M4,NKA187RF97-YB100L4,NKA187RF97-YB112M4,NKA187RF97-YB132M4,NKA187RF97-YB160M4,NKA187RF97-YB80M4,NKA187RF97-YB90S4,NKA187RF97-YDP100L4,NKA187RF97-YDP112M4,NKA187RF97-YDP132M4,NKA187RF97-YDP160M4,NKA187RF97-YDP80M4,NKA187RF97-YDP90S4,NKA187RF97-YE100L4,NKA187RF97-YE112M4,NKA187RF97-YE132M4,NKA187RF97-YE160M4,NKA187RF97-YE80M4,NKA187RF97-YE90S4,NKA187RF97-YEJ100L4,NKA187RF97-YEJ112M4,NKA187RF97-YEJ132M4,NKA187RF97-YEJ160M4,NKA187RF97-YEJ80M4,NKA187RF97-YEJ90S4,NKA187RF97-YEJB100L4,NKA187RF97-YEJB112M4,NKA187RF97-YEJB132M4,NKA187RF97-YEJB160M4,NKA187RF97-YEJB80M4,NKA187RF97-YEJB90S4,NKA187RF97-YP100L4,NKA187RF97-YP112M4,NKA187RF97-YP132M4,NKA187RF97-YP160M4,NKA187RF97-YP80M4,NKA187RF97-YP90S4,NKA187RF97-YPB100L4,NKA187RF97-YPB112M4,NKA187RF97-YPB132M4,NKA187RF97-YPB160M4,NKA187RF97-YPB80M4,NKA187RF97-YPB90S4,NKA187RF97-YPE100L4,NKA187RF97-YPE112M4,NKA187RF97-YPE132M4,NKA187RF97-YPE160M4,NKA187RF97-YPE80M4,NKA187RF97-YPE90S4,NKA187RF97-YS100L4,NKA187RF97-YS112M4,NKA187RF97-YS132M4,NKA187RF97-YS160M4,NKA187RF97-YS80M4,NKA187RF97-YS90S4,NKA187RF97-YVB100L4,NKA187RF97-YVB112M4,NKA187RF97-YVB132M4,NKA187RF97-YVB160M4,NKA187RF97-YVB80M4,NKA187RF97-YVB90S4,NKA187RF97-YVP100L4,NKA187RF97-YVP112M4,NKA187RF97-YVP132M4,NKA187RF97-YVP160M4,NKA187RF97-YVP80M4,NKA187RF97-YVP90S4,NKA187RF97-YVPEJ100L4,NKA187RF97-YVPEJ112M4,NKA187RF97-YVPEJ132M4,NKA187RF97-YVPEJ160M4,NKA187RF97-YVPEJ80M4,NKA187RF97-YVPEJ90S4,JCKA187R97-Y100M4,JCKA187R97-Y112M4,JCKA187R97-Y132M4,JCKA187R97-Y160M4,JCKA187R97-Y80M4,JCKA187R97-Y90M4,JCKA187RF97-Y0.55KWA,JCKA187RF97-Y0.75KWA,JCKA187RF97-Y1.1KWA,JCKA187RF97-Y1.5KWA,JCKA187RF97-Y100M4,JCKA187RF97-Y112M4,JCKA187RF97-Y11KWA,JCKA187RF97-Y132M4,JCKA187RF97-Y15KWA,JCKA187RF97-Y160M4,JCKA187RF97-Y2.2KWA,JCKA187RF97-Y3KWA,JCKA187RF97-Y4KWA,JCKA187RF97-Y5.5KWA,JCKA187RF97-Y7.5KWA,JCKA187RF97-Y80M4,JCKA187RF97-Y90M4,JCKA187RF97-YB100L4,JCKA187RF97-YB112M4,JCKA187RF97-YB132M4,JCKA187RF97-YB160M4,JCKA187RF97-YB80M4,JCKA187RF97-YB90S4,JCKA187RF97-YDP100L4,JCKA187RF97-YDP112M4,JCKA187RF97-YDP132M4,JCKA187RF97-YDP160M4,JCKA187RF97-YDP80M4,JCKA187RF97-YDP90S4,JCKA187RF97-YE100L4,JCKA187RF97-YE112M4,JCKA187RF97-YE132M4,JCKA187RF97-YE160M4,JCKA187RF97-YE80M4,JCKA187RF97-YE90S4,JCKA187RF97-YEJ100L4,JCKA187RF97-YEJ112M4,JCKA187RF97-YEJ132M4,JCKA187RF97-YEJ160M4,JCKA187RF97-YEJ80M4,JCKA187RF97-YEJ90S4,JCKA187RF97-YEJB100L4,JCKA187RF97-YEJB112M4,JCKA187RF97-YEJB132M4,JCKA187RF97-YEJB160M4,JCKA187RF97-YEJB80M4,JCKA187RF97-YEJB90S4,JCKA187RF97-YP100L4,JCKA187RF97-YP112M4,JCKA187RF97-YP132M4,JCKA187RF97-YP160M4,JCKA187RF97-YP80M4,JCKA187RF97-YP90S4,JCKA187RF97-YPB100L4,JCKA187RF97-YPB112M4,JCKA187RF97-YPB132M4,JCKA187RF97-YPB160M4,JCKA187RF97-YPB80M4,JCKA187RF97-YPB90S4,JCKA187RF97-YPE100L4,JCKA187RF97-YPE112M4,JCKA187RF97-YPE132M4,JCKA187RF97-YPE160M4,JCKA187RF97-YPE80M4,JCKA187RF97-YPE90S4,JCKA187RF97-YS100L4,JCKA187RF97-YS112M4,JCKA187RF97-YS132M4,JCKA187RF97-YS160M4,JCKA187RF97-YS80M4,JCKA187RF97-YS90S4,JCKA187RF97-YVB100L4,JCKA187RF97-YVB112M4,JCKA187RF97-YVB132M4,JCKA187RF97-YVB160M4,JCKA187RF97-YVB80M4,JCKA187RF97-YVB90S4,JCKA187RF97-YVP100L4,JCKA187RF97-YVP112M4,JCKA187RF97-YVP132M4,JCKA187RF97-YVP160M4,JCKA187RF97-YVP80M4,JCKA187RF97-YVP90S4,JCKA187RF97-YVPEJ100L4,JCKA187RF97-YVPEJ112M4,JCKA187RF97-YVPEJ132M4,JCKA187RF97-YVPEJ160M4,JCKA187RF97-YVPEJ80M4,JCKA187RF97-YVPEJ90S4,KWA187RW97-Y100M4,KWA187RW97-Y112M4,KWA187RW97-Y132M4,KWA187RW97-Y160M4,KWA187RW97-Y80M4,KWA187RW97-Y90M4,KWA187RWF97-Y0.55KWA,KWA187RWF97-Y0.75KWA,KWA187RWF97-Y1.1KWA,KWA187RWF97-Y1.5KWA,KWA187RWF97-Y100M4,KWA187RWF97-Y112M4,KWA187RWF97-Y11KWA,KWA187RWF97-Y132M4,KWA187RWF97-Y15KWA,KWA187RWF97-Y160M4,KWA187RWF97-Y2.2KWA,KWA187RWF97-Y3KWA,KWA187RWF97-Y4KWA,KWA187RWF97-Y5.5KWA,KWA187RWF97-Y7.5KWA,KWA187RWF97-Y80M4,KWA187RWF97-Y90M4,KWA187RWF97-YB100L4,KWA187RWF97-YB112M4,KWA187RWF97-YB132M4,KWA187RWF97-YB160M4,KWA187RWF97-YB80M4,KWA187RWF97-YB90S4,KWA187RWF97-YDP100L4,KWA187RWF97-YDP112M4,KWA187RWF97-YDP132M4,KWA187RWF97-YDP160M4,KWA187RWF97-YDP80M4,KWA187RWF97-YDP90S4,KWA187RWF97-YE100L4,KWA187RWF97-YE112M4,KWA187RWF97-YE132M4,KWA187RWF97-YE160M4,KWA187RWF97-YE80M4,KWA187RWF97-YE90S4,KWA187RWF97-YEJ100L4,KWA187RWF97-YEJ112M4,KWA187RWF97-YEJ132M4,KWA187RWF97-YEJ160M4,KWA187RWF97-YEJ80M4,KWA187RWF97-YEJ90S4,KWA187RWF97-YEJB100L4,KWA187RWF97-YEJB112M4,KWA187RWF97-YEJB132M4,KWA187RWF97-YEJB160M4,KWA187RWF97-YEJB80M4,KWA187RWF97-YEJB90S4,KWA187RWF97-YP100L4,KWA187RWF97-YP112M4,KWA187RWF97-YP132M4,KWA187RWF97-YP160M4,KWA187RWF97-YP80M4,KWA187RWF97-YP90S4,KWA187RWF97-YPB100L4,KWA187RWF97-YPB112M4,KWA187RWF97-YPB132M4,KWA187RWF97-YPB160M4,KWA187RWF97-YPB80M4,KWA187RWF97-YPB90S4,KWA187RWF97-YPE100L4,KWA187RWF97-YPE112M4,KWA187RWF97-YPE132M4,KWA187RWF97-YPE160M4,KWA187RWF97-YPE80M4,KWA187RWF97-YPE90S4,KWA187RWF97-YS100L4,KWA187RWF97-YS112M4,KWA187RWF97-YS132M4,KWA187RWF97-YS160M4,KWA187RWF97-YS80M4,KWA187RWF97-YS90S4,KWA187RWF97-YVB100L4,KWA187RWF97-YVB112M4,KWA187RWF97-YVB132M4,KWA187RWF97-YVB160M4,KWA187RWF97-YVB80M4,KWA187RWF97-YVB90S4,KWA187RWF97-YVP100L4,KWA187RWF97-YVP112M4,KWA187RWF97-YVP132M4,KWA187RWF97-YVP160M4,KWA187RWF97-YVP80M4,KWA187RWF97-YVP90S4,KWA187RWF97-YVPEJ100L4,KWA187RWF97-YVPEJ112M4,KWA187RWF97-YVPEJ132M4,KWA187RWF97-YVPEJ160M4,KWA187RWF97-YVPEJ80M4,KWA187RWF97-YVPEJ90S4,KA189R99-Y100M4,KA189R99-Y112M4,KA189R99-Y132M4,KA189R99-Y160M4,KA189R99-Y80M4,KA189R99-Y90M4,KA189RF99-Y0.55KWA,KA189RF99-Y0.75KWA,KA189RF99-Y1.1KWA,KA189RF99-Y1.5KWA,KA189RF99-Y100M4,KA189RF99-Y112M4,KA189RF99-Y11KWA,KA189RF99-Y132M4,KA189RF99-Y15KWA,KA189RF99-Y160M4,KA189RF99-Y2.2KWA,KA189RF99-Y3KWA,KA189RF99-Y4KWA,KA189RF99-Y5.5KWA,KA189RF99-Y7.5KWA,KA189RF99-Y80M4,KA189RF99-Y90M4,KA189RF99-YB100L4,KA189RF99-YB112M4,KA189RF99-YB132M4,KA189RF99-YB160M4,KA189RF99-YB80M4,KA189RF99-YB90S4,KA189RF99-YDP100L4,KA189RF99-YDP112M4,KA189RF99-YDP132M4,KA189RF99-YDP160M4,KA189RF99-YDP80M4,KA189RF99-YDP90S4,KA189RF99-YE100L4,KA189RF99-YE112M4,KA189RF99-YE132M4,KA189RF99-YE160M4,KA189RF99-YE80M4,KA189RF99-YE90S4,KA189RF99-YEJ100L4,KA189RF99-YEJ112M4,KA189RF99-YEJ132M4,KA189RF99-YEJ160M4,KA189RF99-YEJ80M4,KA189RF99-YEJ90S4,KA189RF99-YEJB100L4,KA189RF99-YEJB112M4,KA189RF99-YEJB132M4,KA189RF99-YEJB160M4,KA189RF99-YEJB80M4,KA189RF99-YEJB90S4,KA189RF99-YP100L4,KA189RF99-YP112M4,KA189RF99-YP132M4,KA189RF99-YP160M4,KA189RF99-YP80M4,KA189RF99-YP90S4,KA189RF99-YPB100L4,KA189RF99-YPB112M4,KA189RF99-YPB132M4,KA189RF99-YPB160M4,KA189RF99-YPB80M4,KA189RF99-YPB90S4,KA189RF99-YPE100L4,KA189RF99-YPE112M4,KA189RF99-YPE132M4,KA189RF99-YPE160M4,KA189RF99-YPE80M4,KA189RF99-YPE90S4,KA189RF99-YS100L4,KA189RF99-YS112M4,KA189RF99-YS132M4,KA189RF99-YS160M4,KA189RF99-YS80M4,KA189RF99-YS90S4,KA189RF99-YVB100L4,KA189RF99-YVB112M4,KA189RF99-YVB132M4,KA189RF99-YVB160M4,KA189RF99-YVB80M4,KA189RF99-YVB90S4,KA189RF99-YVP100L4,KA189RF99-YVP112M4,KA189RF99-YVP132M4,KA189RF99-YVP160M4,KA189RF99-YVP80M4,KA189RF99-YVP90S4,KA189RF99-YVPEJ100L4,KA189RF99-YVPEJ112M4,KA189RF99-YVPEJ132M4,KA189RF99-YVPEJ160M4,KA189RF99-YVPEJ80M4,KA189RF99-YVPEJ90S4。
KA189R99減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-kaxiliejiansuji-cn.html
推薦型號:K189減速機
關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
標簽:   KA189R99螺旋錐齒輪減速機參數 NKA187RF97減速電機三維圖紙 JCKA187R97減速器生產廠家
